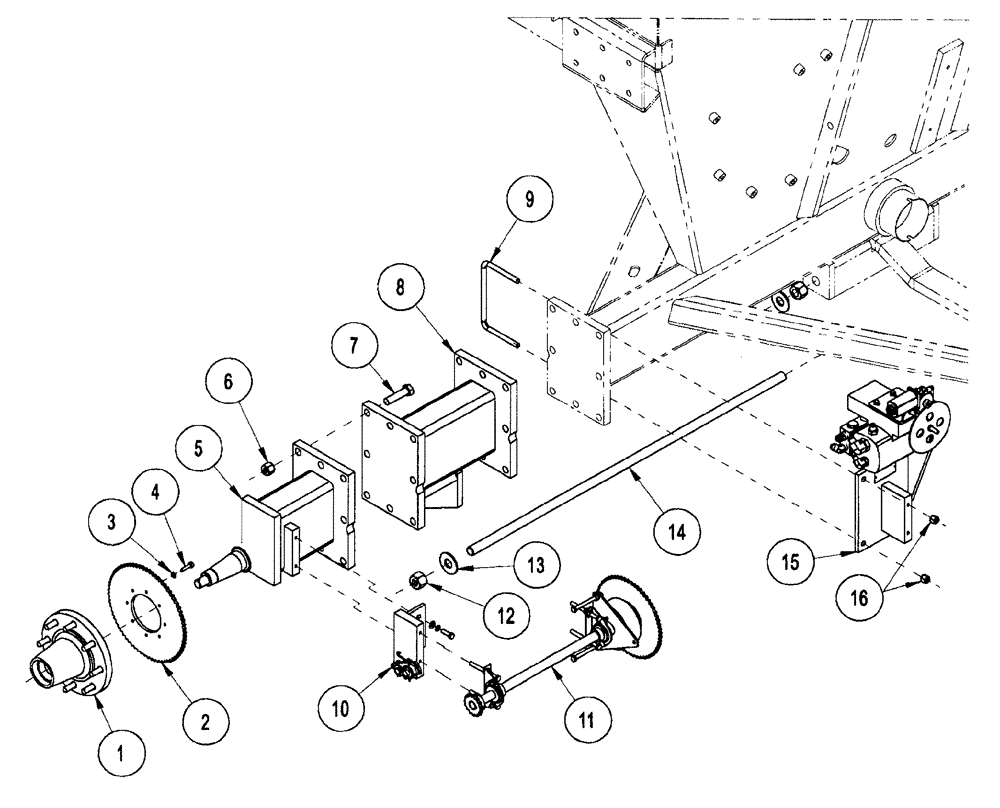

Запчасти Case IH CONCORD (9C-18) - AXLE COMPONENTS FOR 2000/2300/3400/3503 AIR SYSTEMS

1

1020999

HUB

tapping (see air -system manual for parts)

1шт.

2

312318A1

SPROCKET ASSY.

72 tooth

1шт.

3

492-11025

LOCK WASHER,1/4"

8шт.

4

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

8шт.

5

1020776

SPINDLE

120 inch drive (2300, 3400, 3503)

1шт.

5

1025682

FRAME ASSY

SPINDLE - 120 inch drive (2000 w/ adjustable axle)

1шт.

Use axle 1025682 if air system has 8" x 11" bolting plate

1шт.

5

1026267

DRIVE AXLE

SPINDLE - 120 inch drive (2000 w/ fixed axle)

1шт.

5

1024718

SPINDLE

120 inch drive (2000 w/ adjustable axle)

1шт.

Use axle 1024718 if air system has 7.5" x 8" bolting plate

1шт.

6

232-14412

NUT,3/4"-10, GB

3/4 inch NC nylock

1шт.

7

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 inch NC x 3 inch

1шт.

8

312265A1

AXLE, REAR

AXLE REAR 15" extension for 2300/3400/3503 air systems

2шт.

9

1033310

BOLT

U-1/2" inch NC 8 x 5 inch

1шт.

10

NSS

NOT SOLD SEPARAT

IDLER - ASSY 2300/3400/3503 (see page 9C-23)

1шт.

10

NSS

NOT SOLD SEPARAT

IDLER - ASSY 2000 (see page 9C-23)

1шт.

11

NSS

NOT SOLD SEPARAT

DRIVE - CLUTCH ASSY (see page 9C-21 )

1шт.

12

232-14416

NUT,1"-8, GC

1шт.

13

495-21106

WASHER,1"

flat 1 inch

1шт.

14

306359A1

TRUSS ROD

2300 air system

1шт.

14

290667A1

TRUSS ROD

3400/3503 air system

2шт.

15

NSS

NOT SOLD SEPARAT

PUMP - drum drive (see page 9C-25)

1шт.

16

231-1448

NUT,1/2"-13, GB

NC nylock

2шт.
