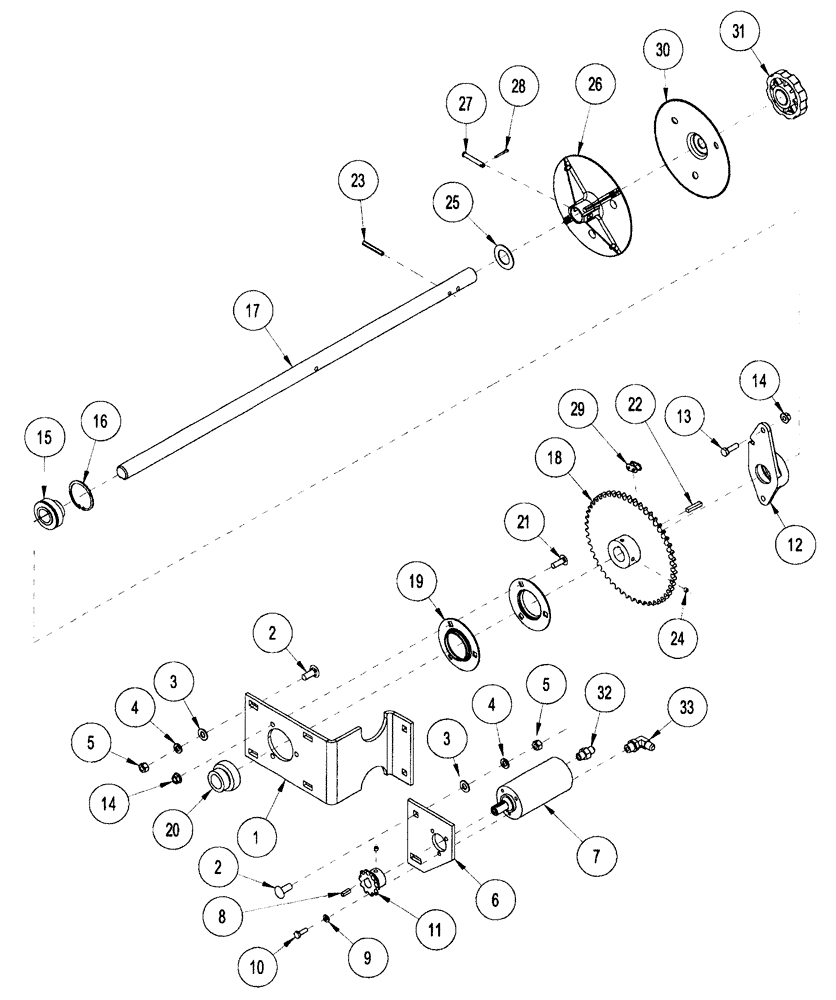

Запчасти Case IH CONCORD (9C-16) - DRIVE DRUM SHAFT

1

189947A1

PLATE

shaft adjustment

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

4

492-11038

LOCK WASHER,3/8"

6шт.

5

425-106

NUT,3/8"-16, Cl 5

6шт.

6

304618A1

BRACKET

PLATE - mounting, module motor

1шт.

7

293288A1

MOTOR

drum drive

1шт.

293288A1R

REMAN-HYD MOTOR

CONCORD Cyclo Air Singulation Attacm.

1шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 square x 11/16 inch long

1шт.

9

492-11025

LOCK WASHER,1/4"

1шт.

10

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT -hex, 1/4 NF x 3/4 inch

3шт.

11

232893A1

SPROCKET

drive (10 tooth)

1шт.

12

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

bearing

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

hex serrated flange, 3/8 inch

5шт.

15

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

ball

1шт.

16

100-21206

SNAP RING,2.062", Int, #206

1шт.

17

290666A1

SHAFT

drum drive

1шт.

18

232895A1

SPROCKET ASSY.

driven (50 tooth)

1шт.

19

937517R1

FLANGE

bearing

2шт.

20

482302R92

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

drum drive

1шт.

21

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

3шт.

22

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x square x 1-1/4 inch

1шт.

23

38-31628

PIN,1/4" x 1 3/4", Coiled

1/4" x 1 3/4", Coiled

1шт.

24

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, 1/4 NC x 1/4 inch, cup pt

4шт.

25

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

26

137129C1

HOUSING

drum drive

1шт.

27

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

1/4 x 1-3/4 inch, grade 2

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

29

302878A1

CHAIN (AG)

DRUM DRIVE - Not Serviced Seperately, use 63 links from bulk chain 1790D, one connecting link 241-1314 and one offset link 241-1714, see below

1шт.

1790D

CHAIN (AG)

10 foot roll, use to make item 29

1шт.

241-1314

CHAIN LINK

connecting, No 40, use to make item 29

1шт.

241-1714

CHAIN LINK

offset, No 40, use to make item 29 .

1шт.

30

141509C1

CAP

PLATE - drum end

1шт.

31

141681C2

HANDLE

KNOB - drum

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

33

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj 0-ring boss

1шт.
