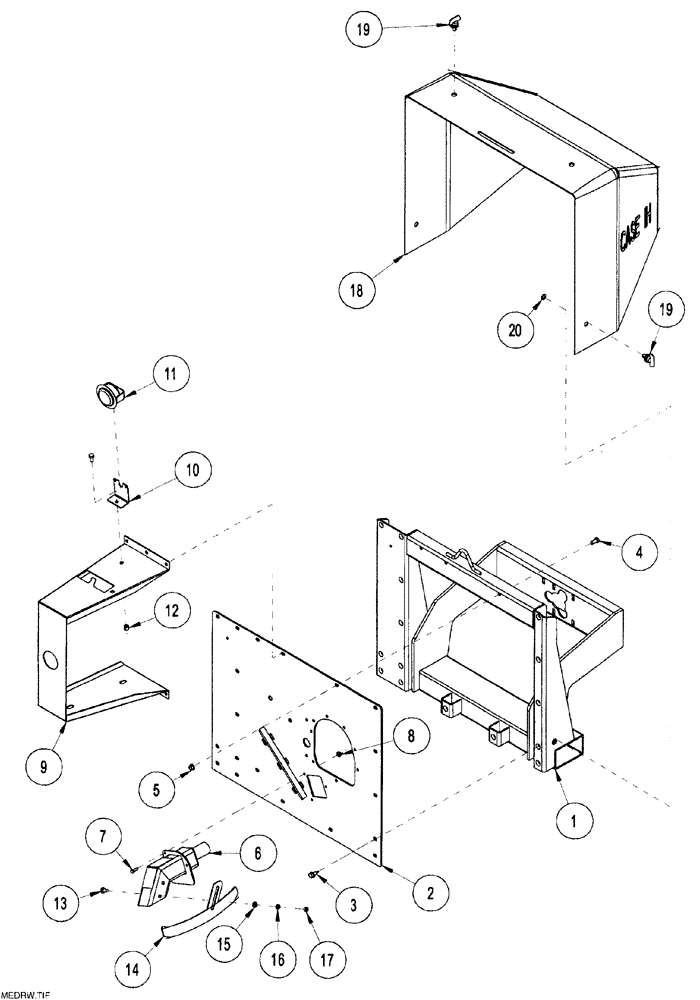

Запчасти Case IH CONCORD (9C-14) - FRAME ASSEMBLY

1

290697A1

FRAME

module

1шт.

2

290644A1

SHEET

firewall

1шт.

3

283-24916

SELF-TAP SCREW,Hex Wash Hd, 3/8"-32 x 1"

self-tapping, hex washer head, 3/8 NC x 1 inch

15шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

231-5146

FLANGE NUT,3/8"-16

19шт.

6

306365A1

TUBE,308.1 mm Length

seed inlet

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

9

141211C3

SUPPORT

cut off wheel

1шт.

10

312228A1

BRACKET

GUAGE, air pressure

1шт.

11

149128C93

GAUGE

air pressure

1шт.

12

231-1446

NUT,3/8" - 16, Gr 5

1шт.

13

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

14

312225A1

BAR

seed leveling

1шт.

15

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

16

492-11031

LOCK WASHER,5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

312236A1

COVER

module

1шт.

19

1326408C2

STUD,25.4mm OD x 52.3mm L

fastener

4шт.

20

1326407C1

RETAINER

STUD, shield

4шт.
