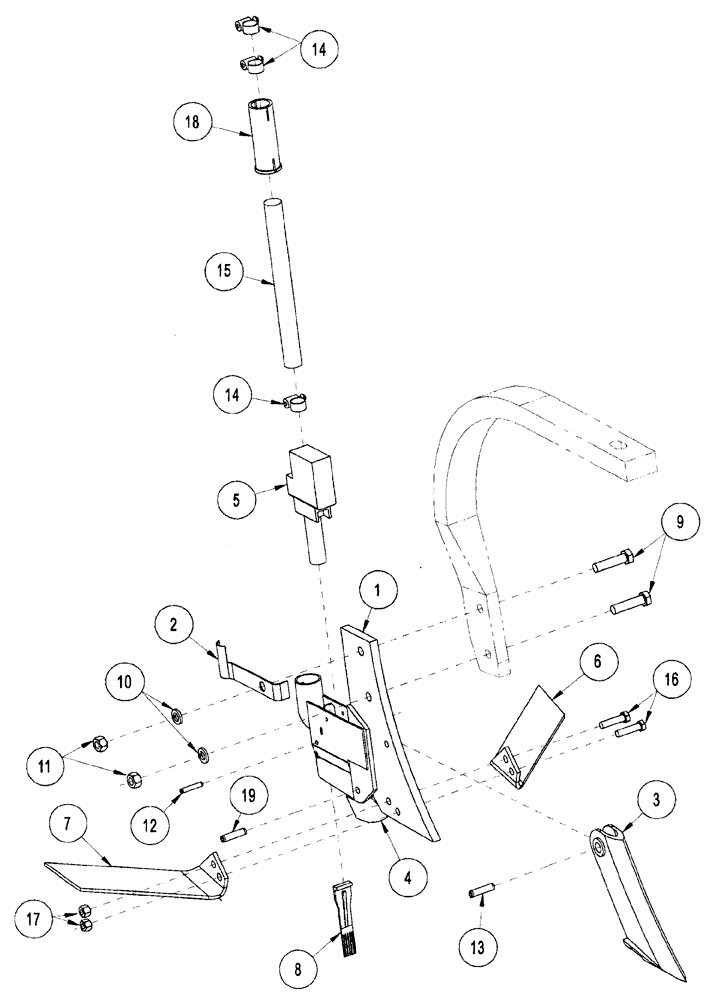

Запчасти Case IH CONCORD (9C-10) - ROW CROP OPENER

1

312649A1

OPENER

row crop

1шт.

2

306988A1

HOLDER

CLAMP - seed tube

1шт.

3

1030569

TIP

TIP - chrome CONCORD

1шт.

4

306373A1

OPENER

POINT -firming

1шт.

5

1978894C1

SENSOR

seed, hi-rate

1шт.

350644A1

SHOVEL

KIT - Sweep (Includes items 6 and 7)

1шт.

6

NSS

NOT SOLD SEPARAT

SWEEP - LH wing (Order 350644A1)

1шт.

7

NSS

NOT SOLD SEPARAT

SWEEP - RH wing (Order 350644A1)

1шт.

8

140817C1

DEFLECTOR

seed

1шт.

9

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

2шт.

12

438-11622

LOCK PIN,1/4" x 1 3/8", Slotted

1/4" x 1 3/8", Slotted

1шт.

13

0100344

SPLIT PIN/SAFETY PIN

roll, 3/8 x 1-1/2 inch ZP

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

3шт.

15

350641A1

TUBE

seed delivery 3/4" x 100' foot roll

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

17

232-4246

NUT,3/8"-16, GC

2шт.

18

100175C2

DIFFUSER

air

1шт.

19

438-12416

LOCK PIN,3/8" x 1", Slotted

3/8" x 1", Slotted

1шт.
