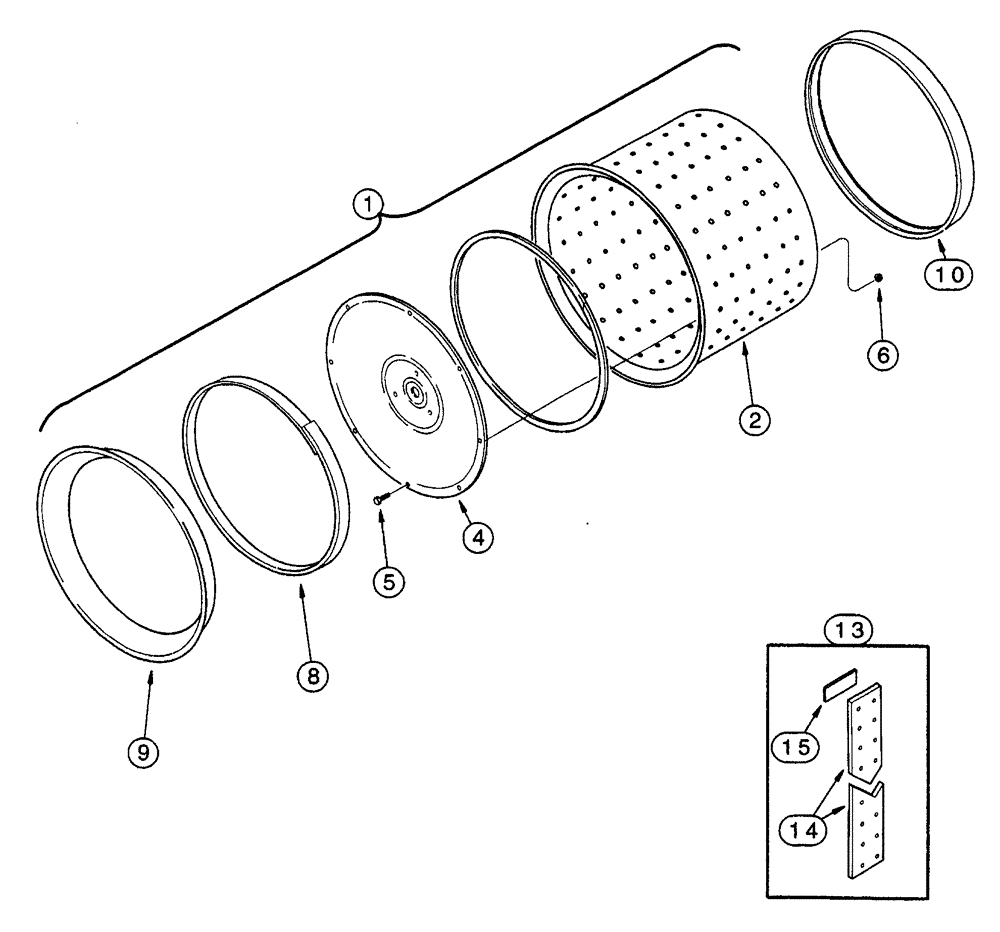

Запчасти Case IH CONCORD (9C-08) - SEED DRUM
№
Артикул
Название
Примечание
Количество
1
548777R95
DRUM
ASSEMBLY - seed, corn, A-24 hole
1шт.
1
1546934C3
DRUM
ASSEMBLY- seed, corn 24 hole
1шт.
1
549966R95
DRUM
ASSEMBLY - seed, popcorn, sunflower, B-24 hole
1шт.
1
149354C92
DRUM
ASSEMBLY - seed, sunflower, J-24 hole
1шт.
1
60270C95
DRUM
ASSEMBLY - seed, corn, 36 hole
1шт.
1
1546935C3
DRUM
ASSEMBLY - seed, corn, 36 hole
1шт.
1
549964R93
DRUM
ASSEMBLY - seed, beet, C-36 hole
1шт.
1
58434C93
DRUM
ASSEMBLY - seed, raw beet, G-36 hole
1шт.
1
61144C95
DRUM
ASSEMBLY - seed, popcorn, sunflower, B-36 hole
1шт.
1
63814C93
DRUM
ASSEMBLY - seed, beet, G-72 hole
1шт.
1
548778R93
DRUM
ASSEMBLY - seed, milo, sorghum, C-72 hole
1шт.
1
549968R93
DRUM
ASSEMBLY - seed, beans, D-72 hole
1шт.
1
1546937C1
DRUM
ASSEMBLY - seed, edible bean, D-96 hole
1шт.
1
549970R93
DRUM
ASSEMBLY- seed, cotton, E-96 hole
1шт.
1
548779R93
DRUM
ASSEMBLY- seed, soybean, H-144 hole
1шт.
1
60649C93
DRUM
ASSEMBLY- seed, cotton, soybean, F-144 hole
1шт.
1
58436C93
DRUM
ASSEMBLY - seed, sorghum, C-144 hole
1шт.
1
1546936C1
DRUM
ASSEMBLY - seed, small seed, G-144 hole
1шт.
1
76810C92
DRUM
ASSEMBLY - seed, soybean, H-240 hole
1шт.
2
NSS
NOT SOLD SEPARAT
DRUM - seed (order drum assembly)
1шт.
3
57555C1
SEALING STRIP
DRUM, 1613 mm (63-1/2 inch) long, cut from 57554C1 bulk seal see below
1шт.
4
145113C1
CAP
COVER - end, drum
1шт.
5
442-11010
SCREW,Cross Oval Hd, #10-24 x 5/8"
machine, oval Phillips, No. 10 NC x 5/8 inch
8шт.
6
231-51409
SERRATED NUT,Flg, USR, #10-24
8шт.
8
60303C5
RING, SNAP
RING SNAP seal retaining
1шт.
9
100589C3
SEAL
DRUM
1шт.
10
57669C4
BELT,38.10 mm W x 1133.00 mm L
Seed drum
1шт.
13
63280C1
PACKAGE
KIT - cushion belt, seed drum
1шт.
Kit includes belt for 2 rows on 36-hole drum. Used when planting long slender corn or butterfly tip corn.
1шт.
14
NSS
NOT SOLD SEPARAT
BELT - cushioning, drum
1шт.
15
NSS
NOT SOLD SEPARAT
FASTENER - belt
1шт.
57554C1
SEAL
foam, 200 foot roll
1шт.
Выбрано товаров: 32
