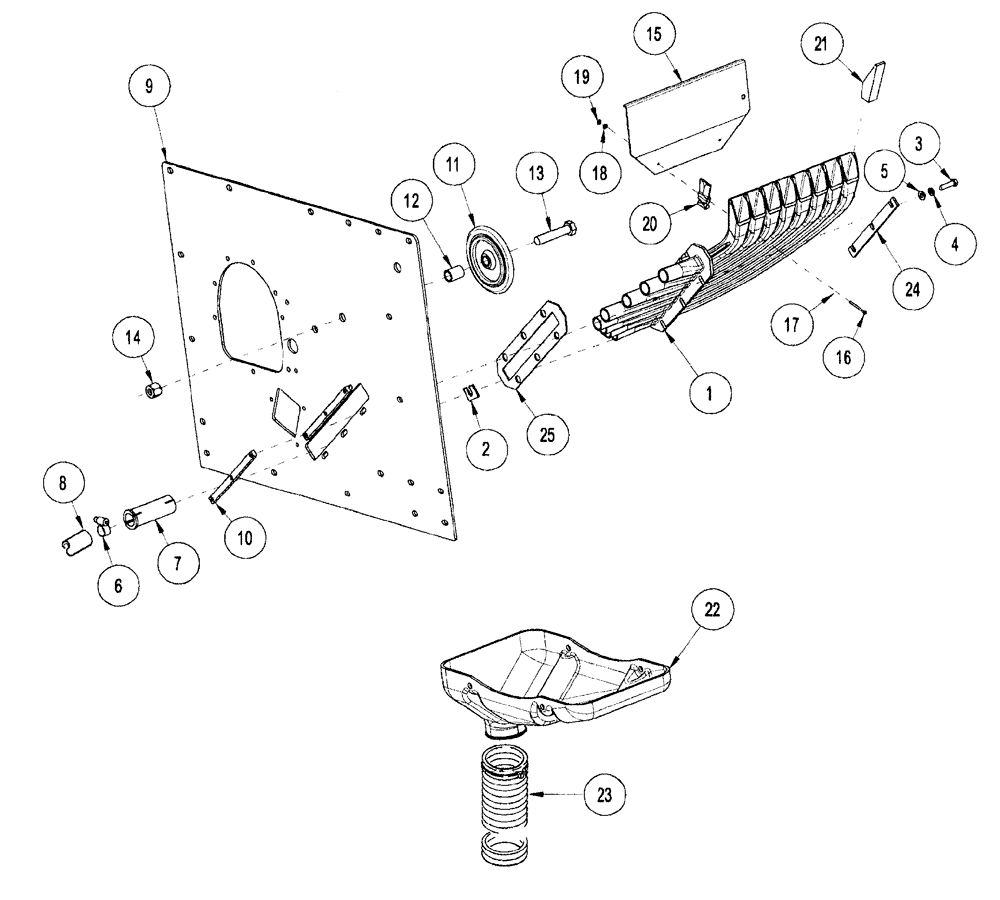

Запчасти Case IH CONCORD (9C-04) - SEED MODULE DISCHARGE MANIFOLD

1

141113C3

MANIFOLD

discharge

1шт.

2

151670C1

SHIM

SHIM - .036 inch, manifold

1шт.

2

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015 inch, manifold

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

4

492-11031

LOCK WASHER,5/16"

6шт.

5

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

6шт.

6

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj, 13/16 - 1-1/2 inch dia

1шт.

7

182685A1

CONNECTOR, ELEC

CONNECTOR seed tube

1шт.

8

350641A1

TUBE

seed delivery 3/4" x 100 ft rolls

1шт.

9

290644A1

SHEET

front firewall

1шт.

10

147284C1

STRIP

BRACKET - manifold mounting

2шт.

11

548821R3

WHEEL,104.78mm Idler Dia x 133.35mm OD x 20.64mm W

WHEEL - drum support

1шт.

12

145115C2

SPACER

support wheel

1шт.

13

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

14

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

1шт.

15

1279051C2

EXTENSION

PLATE - manifold

1шт.

16

440-10628

SCREW,Cross Pan Hd, #6-32 x 1 3/4"

machine, pan Phillips, No. 6 NC x 1 3/4 inch

2шт.

17

495-31016

WASHER,#6

2шт.

18

492-11006

LOCK WASHER,#6

2шт.

19

225-14106

NUT,#6-32

2шт.

20

1279050C1

SPACER

manifold extension

2шт.

21

144839C1

STRIP

PLUG - manifold

1шт.

22

188287A1

FUNNEL

CHUTE - seed

1шт.

23

223608A1

HOSE,3.00" ID x 24.00"

extension

1шт.

24

356865A1

BAR

REINFORCING

2шт.

25

307409A1

SEAL

GASKET

1шт.
