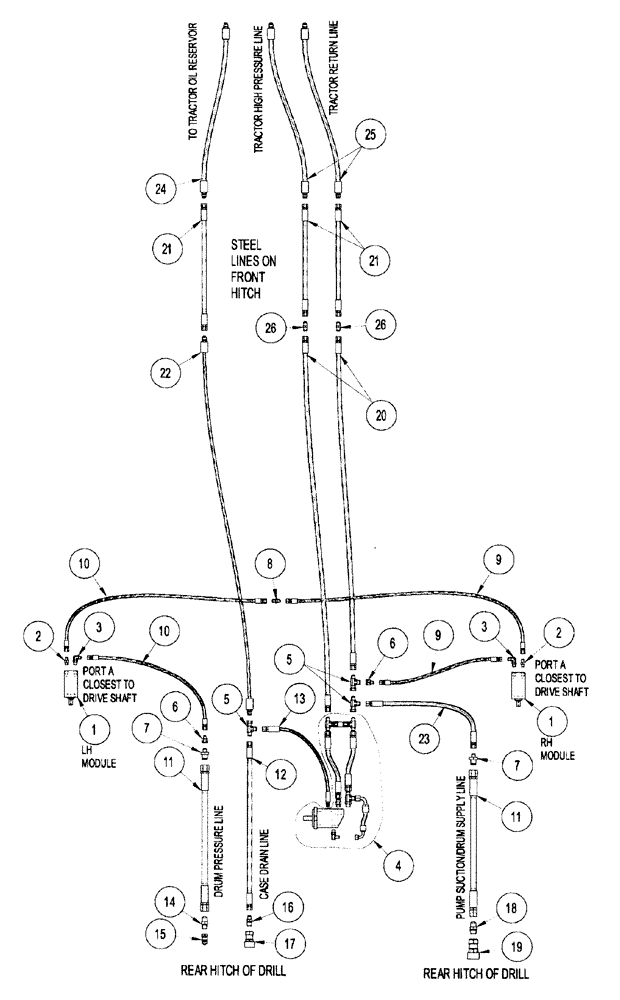

Запчасти Case IH CONCORD (8-18) - CYCLO AIR ON TILL DRILL W/STANDARD FAN AND DIESEL AIR SYSTEM

1

293288A1

MOTOR

Meter Drive

2шт.

293288A1R

REMAN-HYD MOTOR

CONCORD Cyclo Air Singulation Attacm.

2шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

STR THD 3/8 37FL-ORB 3/8

2шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 ADJ 37FL 3/8 Tube

2шт.

4

NSS

NOT SOLD SEPARAT

MOTOR, ASSEMBLY, SEE PAGE 8-3

1шт.

5

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Swivel Run 37FL 1/2 X 1/2 X 1/2

3шт.

6

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

ADAPTER, Tube 1 PC 37FL 1/2 X 3/8

1шт.

7

218-853

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, 37 Degree

ADAPTER LG Hex 37FL 3/4 X 1/2

2шт.

8

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 37FL 3/8 X 3/8

1шт.

9

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4" X 165" -6JICFSW Both

2шт.

10

147779C1

HYDRAULIC HOSE

1/4" X 145" -6JICFSW Both

2шт.

11

1026113

HYD TUBE,3454 mm Length

3/4" X 136" Offset Steel

2шт.

12

1026112

HYD TUBE,3454 mm Length

1/2" X 136" Offset Steel

1шт.

13

1015017

HOSE ASSY.

3/8" X 44" -8JICFSW -6 OR M

1шт.

14

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

37FL 3/4 Tube X 1/2 NPTM

1шт.

15

1272770C2

COUPLING, BREAK AWAY

ISO Male 1/2" Pipe

1шт.

16

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR, 37FL 1/2 Tube X 1/2 NPTM

1шт.

17

1994568C1

COUPLING, QUICK, FEM

ISO Female 1/2" Pipe

1шт.

18

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR, 37FL 3/4 Tube X 3/4 NPTM

1шт.

19

114532A1

COUPLING

Aeroquip Female 3/4" Pipe

1шт.

20

1015222

HYDRAULIC HOSE

HYD .5 X 90 FL

2шт.

21

1026743

HYD TUBE,0.5" Diameter, 108" Length

1/2" X 108" Steel

3шт.

22

1026114

HOSE ASSY.

3/8" X 90" -8JICM Both

1шт.

23

1018115

HOSE ASSY.

1/2" X 30" -8JICFSW Both

1шт.

24

1018133

HYDRAULIC HOSE

HOSE HYD .375 X 96 FL

1шт.

25

312366A1

HOSE ASSY.

1/2" X 96" -8JICM -8NPTM

2шт.

26

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION -8JICM

2шт.
