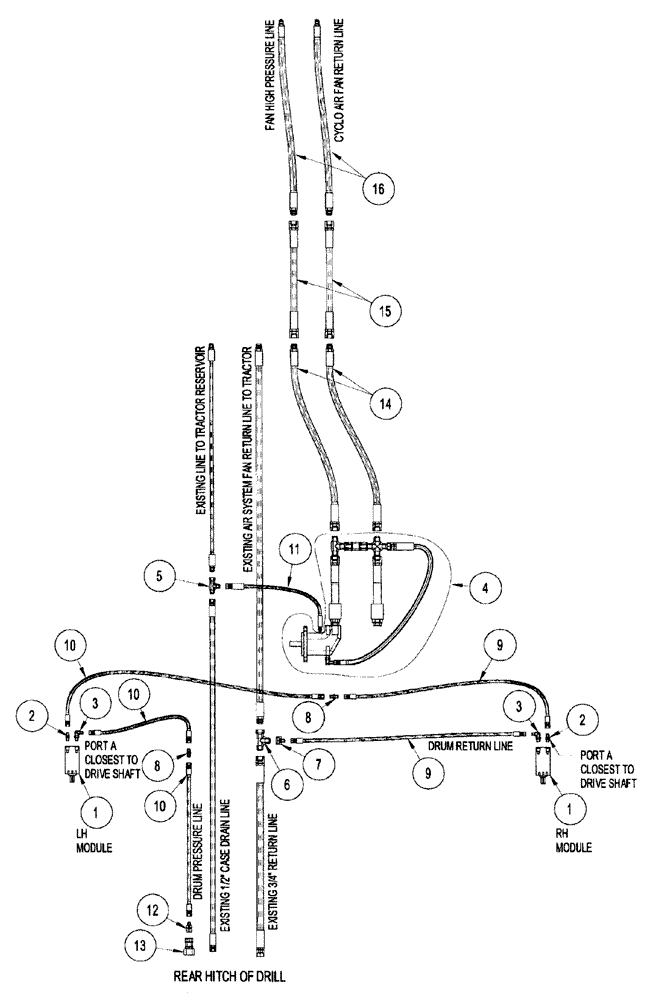

Запчасти Case IH CONCORD (8-16) - CYCLO AIR ON AIR TILL DRILL W/ HIGH FLOW FAN AND HYDRAULIC AIR SYSTEM

1

293288A1

MOTOR

Meter Drive

2шт.

293288A1R

REMAN-HYD MOTOR

CONCORD Cyclo Air Singulation Attacm.

2шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

STR THD 3/8 37FL-ORB 3/8

2шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 ADJ 37FL 3/8 Tube

2шт.

4

NSS

NOT SOLD SEPARAT

MOTOR, ASSEMBLY, SEE PAGE 8-5

1шт.

5

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Swivel Run 37FL 1/2 X 1/2 X 1/2

1шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

TEE, Swivel Run 37FL 3/4 X 3/4 X 3/4

1шт.

7

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

ADAPTER, Tube 1 PC 37FL 3/4 X 3/8

1шт.

8

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 37FL 3/8 X 3/8

2шт.

9

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4" X 165" -6JICFSW Both

2шт.

10

147779C1

HYDRAULIC HOSE

1/4" X 145" -6JICFSW Both

3шт.

11

1015017

HOSE ASSY.

3/8" X 44" -8JICFSW -6 OR M

1шт.

12

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

6JICM -8NPTM

1шт.

13

1994568C1

COUPLING, QUICK, FEM

ISO Female 1/2" Pipe

1шт.

14

312269A1

HOSE ASSY.

3/4" X 90" -12 JICM -12JICFSW

2шт.

15

1026745

TUBE,0.75" Diameter, 108" Length

3/4" X 108" Steel

2шт.

16

1018134

HYDRAULIC HOSE

HOSE HYD .75 X 96 FL

2шт.
