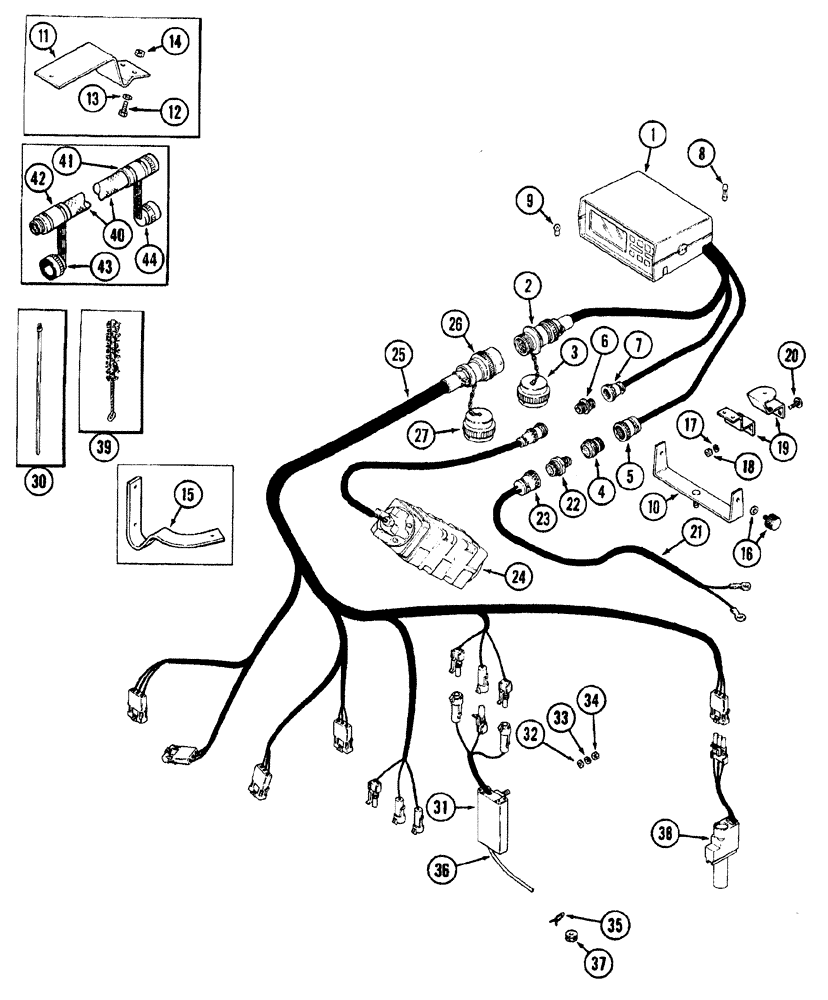

Запчасти Case IH CONCORD (4-02) - SEED MONITOR

1

1935062C2

REMAN-ELECT GAUGE

MONITOR - Early Riser, remanufactured see 1935063C2

1шт.

1

1935063C2

CORE-MONITOR

RETURN NUMBER - use this number for return core credit

1шт.

1

1336000C2

CONTROL

MONITOR - Early Riser, new

1шт.

2

225337C1

ELEC CONNECTOR,20 - 22

electrical, type LV

1шт.

3

245041C1

CAP

electrical connector type EC

1шт.

4

225165C1

ELEC CONNECTOR

electrical, type GQ

1шт.

5

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, type GK

1шт.

6

1994740C1

ELEC CONNECTOR,Female, 4 Pin

electrical, type MD

1шт.

7

1994741C1

CONTACT HOUSING

CLAMP - cable, type MC

1шт.

8

223-26

FUSE,5 Amp, Type 3AG

3 AG, 5 ampere

2шт.

9

D71346

TAIL LAMP,12V

LAMP, No 168

2шт.

10

1261523C91

BRACKET

mounting

1шт.

11

90905C2

BRACKET, SUPPORTING

mounting (J I Case Tractor)

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

1960456C1

BRACKET

mounting (5100, 5200, 7100 and 7200 Series Tractors)

1шт.

15a

60-6821T1

SUPPORT

BRACKET, mounting (9200 Series Tractors)

1шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

hex, 1/4 NC x 2 3/4 inch

2шт.

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

232-4114

LOCK NUT,1/4"-20, GC

2шт.

16

1336002C1

KNOB

KIT - includes 2 knobs and 2 washers

1шт.

17

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

18

325-105

NUT,5/16"-18, G5

hex, 5/16 inch NC

1шт.

19

1261522C91

BRACKET, SUPPORTING

KIT - mounting (88 Series Tractors)

1шт.

20

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

21

1336001C2

CABLE

HARNESS ASSEMBLY - battery

1шт.

22

225362C1

TERMINAL CONNECTOR

electrical, type ME

1шт.

23

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, type GK

1шт.

24

97576C1

SENSOR

SENSOR - order from Machinery Price List, true ground speed

1шт.

24

BN95030AR

SENSOR

CONCORD CYCLO AIR SINGULATION ATTACHMENT, SENSOR order from Machinery Price List, true ground speed

1шт.

24

BN95030AC

CORE-SENSOR

Return Number

1шт.

25

119769A1

HARNESS

monitor (12 row narrow front fold)

1шт.

25

115130A1

HARNESS

monitor (16 row narrow front fold)

1шт.

26

225336C1

ELEC CONNECTOR,Male, 35 Pin

electrical type LU

1шт.

27

245041C1

CAP

electrical connector, type EC

1шт.

30

217285C1

STRAP

tie, 4 inch

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

30

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

350280A1

SENSOR

KIT - air pressure (includes items 31 through 37)

1шт.

31

NSS

NOT SOLD SEPARAT

SENSOR - air pressure, order 350280A1

1шт.

32

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

33

492-11025

LOCK WASHER,1/4"

1шт.

34

425-104

NUT,1/4"-20, Cl 5

1шт.

35

214-1304

HOSE CLAMP,#4, 1/4", Spring

spring type, 1/4 inch

2шт.

36

1336007C1

AIR HOSE,0.13" ID x 36.00"

Pressure

1шт.

37

1336026C1

GROMMET

rubber, air hose

1шт.

38

1978894C1

SENSOR

seed, hi-rate

1шт.

39

128817C1

BRUSH, COMMUTATOR

BRUSH sensor cleaning

1шт.

40

1336017C3

HARNESS

ASSEMBLY - extension, 4572 mm (180 inch) long (Used with large 4WD tractor)

1шт.

41

225336C1

ELEC CONNECTOR,Male, 35 Pin

electrical, type LU

1шт.

42

225337C1

ELEC CONNECTOR,20 - 22

electrical, type LV

1шт.

43

245041C1

CAP

electrical connector, type EC

1шт.

44

245043C1

CAP

electrical connector, type EB

1шт.
