Запчасти Case IH U-214 (T-14[A]) - TUBE APPLICATOR AND STREAM DIVIDER

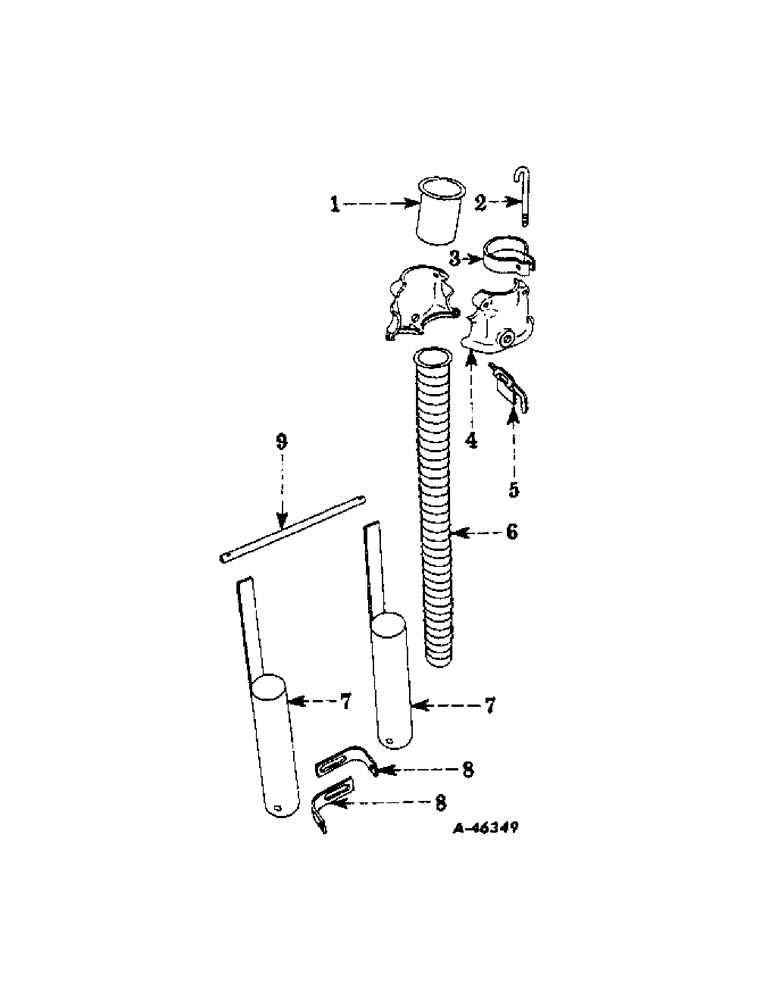

Схема запчастей Case IH U-214 - (T-14[A]) - TUBE APPLICATOR AND STREAM DIVIDER
4
8
6
2
9
3
8
7
5
7
1

Артикул

Название

Примечание

Количество

1

516482R1

TUBE

connecting

1шт.

2

516480R1

BOLT,1/4"-13 x 2 7/8"

connecting tube hook

1шт.

NUT, 1/4 in.

1шт.

WASHER, 17/64 x 5/8 x 11 ga

1шт.

3

516385R1

CLAMP

connecting tube

1шт.

NUT, no. 10 sq.

1шт.

110504

SCREW,Slotted Rd Hd, #10-24 x 1"

no. 10 x 1 in. slt-rd-hd mach

1шт.

WASHER, no. 10 lock

1шт.

4

516477R1

CASE

divider

1шт.

NUT, no. 10 sq.

2шт.

110510

SCREW, no. 10 x 2 in. slt-rd-hd mach

2шт.

WASHER, no. 10 lock

2шт.

5

516478R11

DIVIDER

VALVE ASSEMBLY, divider

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

WASHER, 11/32 x 3/4 in. x 16 ga

1шт.

6

622000R1

TUBE

fertilizer, 22 in. long

1шт.

7

523244R11

GUARD, tube, 1957

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

B2101/2

AXLE PIN

PIN, 1/4 x 1/2 in. dld-std-hd

1шт.

WASHER, 9/32 x 3/4 in. x 18 ga

1шт.

8

523242R1

STRAP, tube, 1957

1шт.

9

523241R1

SUPPORT, tube, 1957

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

2шт.

Выбрано товаров: 23
