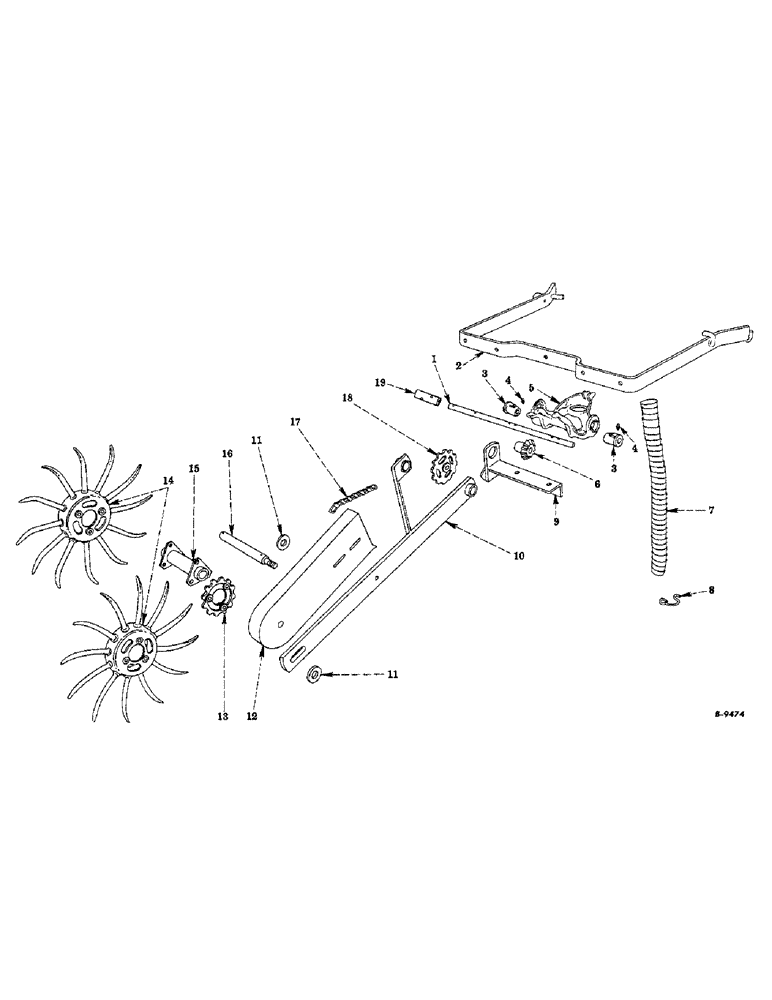

Запчасти Case IH U-212 (S-4) - FRAME AND ROTARY WHEEL

1

522594R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

2

623967R91

FRAME, hopper, for use on tractors w/traction control fast-hitch

1шт.

2

522611R91

FRAME, hopper, for use on tractors w/o traction control fast- hitch

1шт.

BOLT, 1/2 x 2-1/2 in. mach

2шт.

WASHER, 1/2 in. lock

2шт.

3

PO1818

BUSHING

BEARING, feed shaft

1шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

4

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 in. drive type straight lubrication, in rotary wheel hub

1шт.

5

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/2 in. crg

1шт.

WASHER, 1/2 in. lock

1шт.

6

513998R1

PINION

13T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

7

PO27873A

TUBE,1.437" ID x 1.875" OD x 20" L

ribbon, 20 in. long

1шт.

BOLT, 5/16 x 1 in. crg

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.

WASHER, 11/32 x 3/4 in. x 16 ga

1шт.

8

PO28475

BRACE

CONNECTION, ribbon tube

1шт.

9

522613R91

SUPPORT, left hopper

1шт.

9

522612R91

SUPPORT, right hopper

1шт.

BOLT, 1/2 x 1-1/2 in. mach

4шт.

WASHER, 1/2 in. lock

4шт.

10

522601R1

YOKE, rotary wheel

1шт.

11

522601R1

WASHER, yoke arm

1шт.

12

522615R91

GUARD, chain

1шт.

BOLT, 3/8 x 1-1/4 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

13

522592R1

SPROCKET, rotary wheel sleeve, 12T

1шт.

BOLT, 3/8 x 1-3/4 in. mach

3шт.

WASHER, 3/8 in. lock

3шт.

14

522294R11

WHEEL, rotary, riveted assembly

1шт.

15

522617R91

BEARING, rotary wheel

1шт.

BOLT, 3/8 x 1-1/4 in. mach

3шт.

WASHER, 3/8 in. lock

3шт.

16

522595R11

SPINDLE W/NUT, rotary wheel

1шт.

NUT, 3/4 in.

1шт.

PIN, 1/4 x 1-1/2 in. self-opening cotter

2шт.

WASHER, 3/4 in. lock

1шт.

WASHER, 1-3/32 x 1-3/4 in. x 9 ga

2шт.

17

CHAIN, drive, use 67 no. 32 steel links from 10 ft. roll no. CS-32

1шт.

18

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, feed shaft, 8T

1шт.

18

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW, feed shaft, 12T

1шт.

18

510943R1

SPROCKET ASSY.

SPROCKET W/SET SCREW, feed shaft, 15T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

19

519393R1

COUPLING, feed shaft

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

2шт.

517194R1

PIN, 1/4 x 1-3/8 in. dld-std-hd

2шт.
