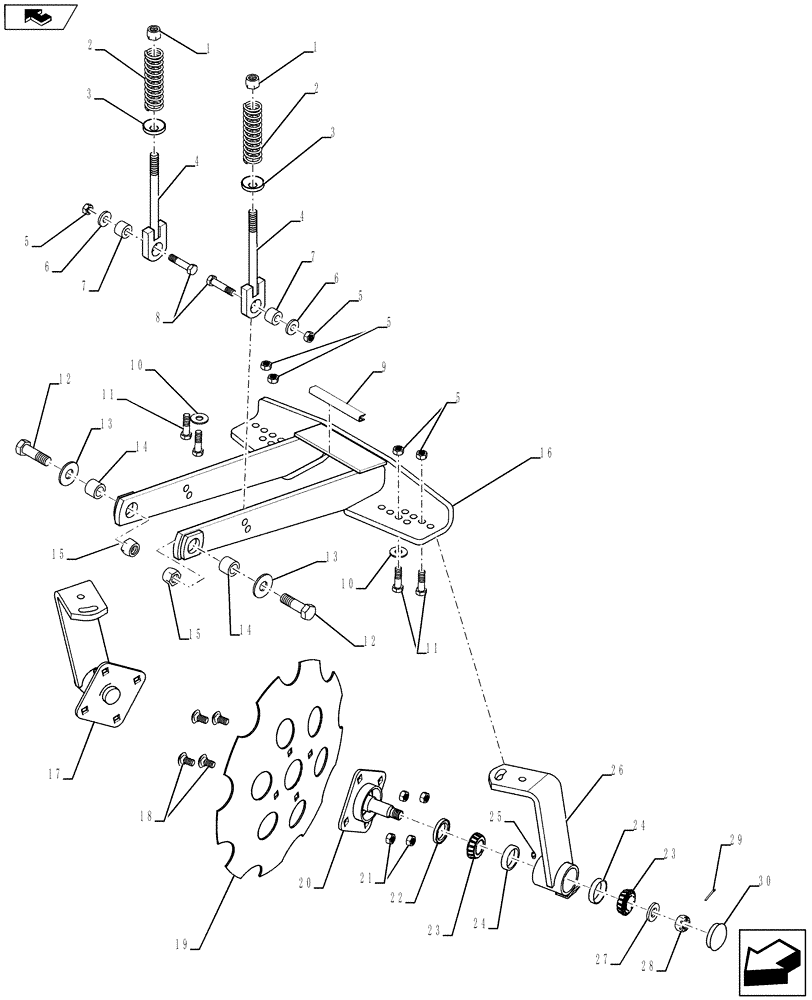

Запчасти Case IH NT950 (75.200.06) - BERM BUILDER ASSEMBLY (75) - SOIL PREPARATION

1

85700693

NUT,5/8" - 11, Gr C

2шт.

2

24117700

COMPRESSION SPRING

2шт.

3

17506020

CUP WASHER,16.66mm ID x 44.45mm OD x 1.52mm Thk

2шт.

4

87519753

EYEBOLT

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

6шт.

6

87613190

WASHER,0.53" ID x 1.25" OD x 0.18" Thk

2шт.

7

87534971

BUSHING,14.3mm ID x 28.58mm OD x 20.6mm L

2шт.

8

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

9

04691609

TRIM PANEL

1шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

11

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

12

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

2шт.

13

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

14

87397246

BUSHING,20.62mm ID x 31.75mm OD x 25.4mm L

2шт.

15

280375

NUT,3/4"-10, GC

2шт.

16

87543796

STRIPPER

1шт.

17

04691610

ARM ASSY.

LH

1шт.

17

04691605

ARM ASSY.

RH

1шт.

18

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

19

84374420

NOTCHED DISK

1шт.

20

09103110

DISC

1шт.

21

86992215

LOCK NUT,1/2"-13, GC

4шт.

22

21931375

SEAL

1шт.

23

463911R91

ROLLER BEARING,1" ID x 0.58"

2шт.

24

572564R1

BEARING CUP

2шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

26

04691611

ARM

LH

1шт.

26

04691606

ARM

RH

1шт.

27

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

1шт.

28

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

29

432-816

COTTER PIN,1/8" x 1"

1шт.

30

28420021

CAP

1шт.
