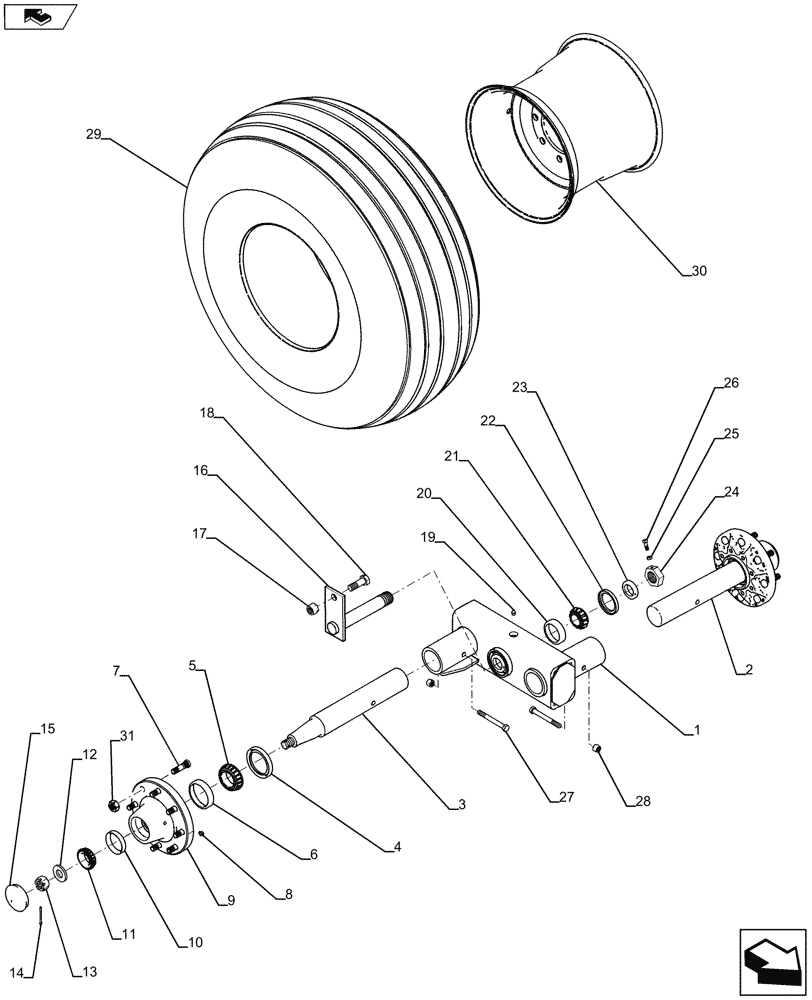

Запчасти Case IH NT950 (44.100.01) - MAIN FRAME TANDEM (44) - WHEELS

1

84339757

AXLE

LH, Includes Bearing Cups and Zirc

1шт.

1

84339758

AXLE

RH, Includes Bearing Cups and Zirc

1шт.

2

84393852

SPINDLE

Assembly

1шт.

3

84399185

SPINDLE

1шт.

4

87790840

SEAL

1шт.

5

49030

BEARING CONE,2.2505" ID x 0.86"

1шт.

6

21883541

BEARING, CUP

1шт.

7

557309R1

BOLT

8шт.

8

87414

LUBE NIPPLE,1/4" - 28

1шт.

9

87758621

HUB

Includes Bearing Cups

1шт.

10

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

1шт.

11

87476379

BEARING CONE,41.27mm ID x 19.81mm W

1шт.

12

17916100

WASHER

1шт.

13

86020752

SLOTTED NUT

1шт.

14

88182

COTTER PIN,1/4" OD x 2" L

1шт.

15

84238032

DUST CAP

1шт.

16

84242401

PIN

1шт.

17

280375

NUT,3/4"-10, GC

1шт.

18

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

19

87645504

FITTING

1шт.

20

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

21

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1шт.

22

21932510

SEAL

1шт.

23

06400573

SPACER

1шт.

24

14032409

NUT

1шт.

25

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

26

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

1шт.

27

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

28

88871

NUT,1/2"-13, GC

2шт.

29

NSS

NOT SOLD SEPARAT

16.5 - 16.1 Radial Tire

1шт.

30

10114167

WHEEL

1шт.

31

554480R1

WHEEL NUT

Hub

8шт.
