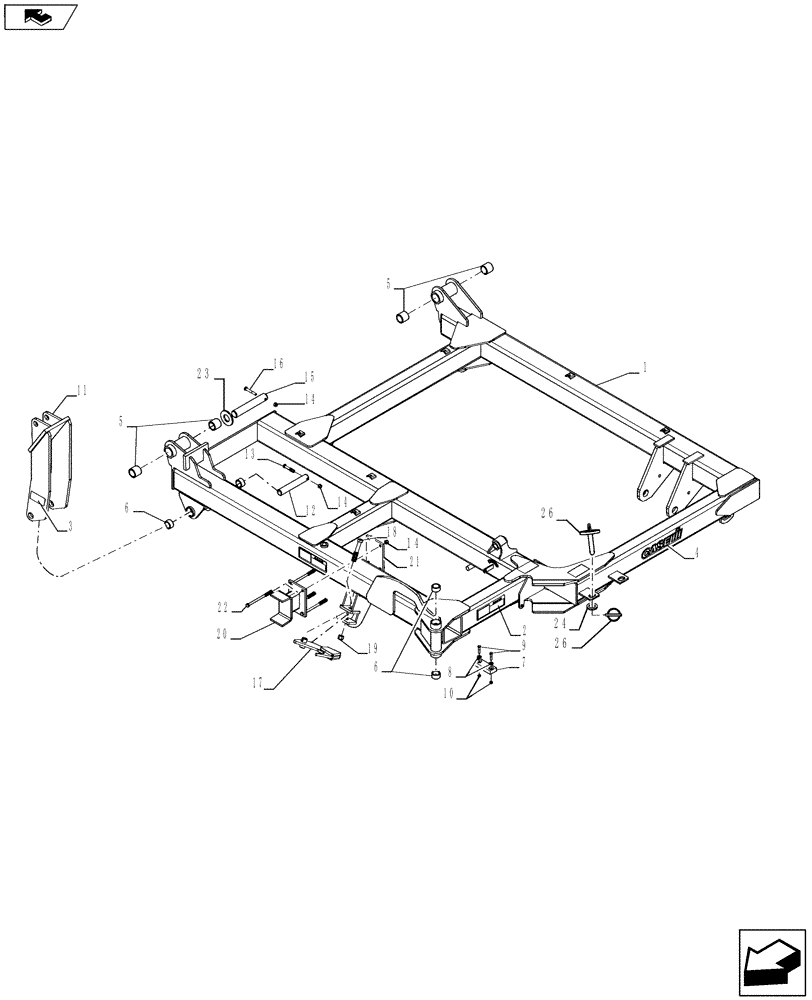

Запчасти Case IH NT950 (39.100.03) - MIDDLE WING (39) - FRAMES AND BALLASTING

1

84263969

U-FRAME

Middle Wing, Left Side With Decals

1шт.

1

84263971

U-FRAME

Middle Wing, Right Side With Decals

1шт.

2

18534333

DANGER DECAL

Pinch Hazard

2шт.

3

406860A1

DECAL

Pinch Hazard

1шт.

4

87653276

DECAL

CIH

1шт.

5

84239758

BUSHING

Composite

4шт.

6

87624379

BEARING LINER,38.27 mm ID x 50.88 mm OD x 25.4 mm

Colter Pivot

2шт.

7

04670230

SPACER

Rubber Pad

1шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

9

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

10

88902

NUT,3/8"-16

2шт.

11

84294070

CONNECTING LINK

Middle Wing Fold

1шт.

12

87755240

PIN

1шт.

13

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

14

88871

NUT,1/2"-13, GC

6шт.

15

84250969

PIN

2шт.

16

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

17

84361453

PLATE

Gravity Latch

1шт.

18

9602203

BOLT,Hex, 3/4" x 5", Gr 8

1шт.

19

280375

NUT,3/4"-10, GC

1шт.

20

84247889

U-FRAME

Bolt On Wing Stop

1шт.

21

84247892

PLATE

Wing Stop

1шт.

22

280831

BOLT,Hex, 1/2" - 13 x 8", Gr 5

4шт.

23

84359104

WASHER,1.88" ID x 3.38" OD x 0.19" Thk

2шт.

24

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

25

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

26

270184

LINCH PIN,6.35mm OD

1шт.
