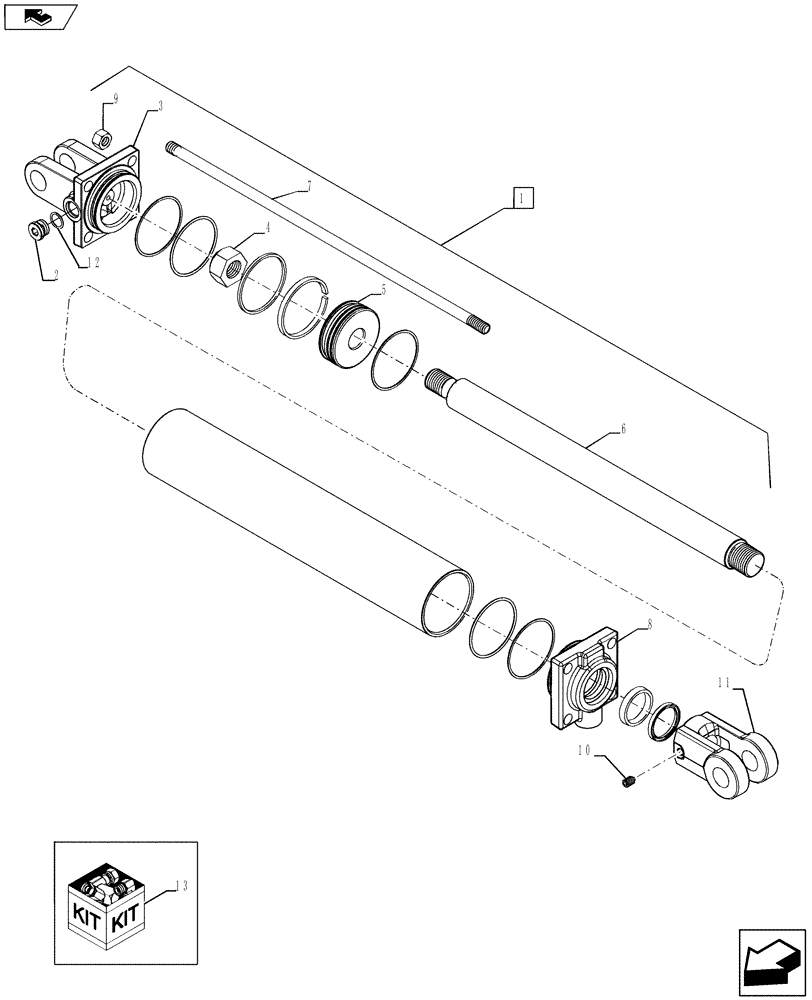

Запчасти Case IH NT950 (35.100.04) - WING FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

1

87493925

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4.50" X 36.00"

1шт.

87493925R

REMAN-HYD CYLINDER

NT950 (1/12-)

1шт.

87493925C

CORE-HYD CYLINDER

Return Number

1шт.

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.00" X 16.00"

1шт.

1

25330160R

REMAN-HYD CYLINDER

NT950, STRIP-TILL APPLICATOR, 3.00" X 16.00" (1/12-)

1шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

87410800

CLEVIS

4.50" X 36.00"

1шт.

3

87409445

HEAD

3.00" X 16.00"

1шт.

4

87023139

NUT

4.50" X 36.00"

1шт.

4

87314800

LOCK NUT

3.00" X 16.00"

1шт.

5

87409474

PISTON

4.50" X 36.00"

1шт.

5

87635232

PISTON

3.00" X 16.00"

1шт.

6

84221852

PISTON ROD

4.50" X 36.00"

1шт.

6

87548067

SHAFT

3.00" X 16.00"

1шт.

7

87410779

TIE-ROD

4.50" X 36.00"

1шт.

7

87577798

THREADED TIE-ROD

3.00" X 16.00"

1шт.

8

87409400

HEAD

4.50" X 36.00"

1шт.

8

8952

CYLINDER END CAP

3.00" X 16.00"

1шт.

9

408

NUT,5/8" - 18, Gr 5

4.50" X 36.00"

1шт.

9

280963

NUT,Nut, 1/2-20 GR 5 ZND

3.00" X 16.00"

1шт.

10

84212867

SET SCREW

1шт.

11

87410782

ROD

4.50" X 36.00"

1шт.

11

87409387

CLEVIS,1 -1/4" - 12

3.00" X 16.00"

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87409042

SEAL KIT

4.50" X 36.00"

1шт.

13

9660V2

SEAL KIT

3.00" X 16.00"

1шт.
