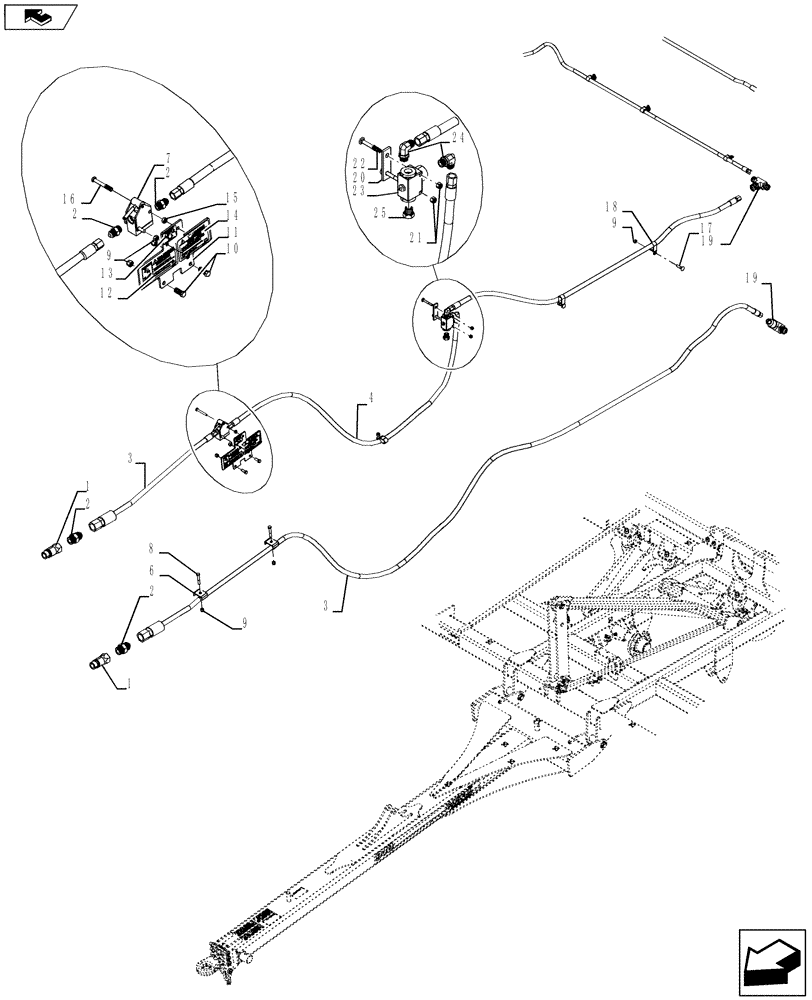

Запчасти Case IH NT950 (35.100.03) - MAIN FRAME LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25705041

COUPLING

2шт.

2

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

3

84293071

HYDRAULIC HOSE,12.70 mm ID x 8255.00 mm

1шт.

4

90874C1

HYDRAULIC HOSE

1шт.

5

84293072

HYDRAULIC HOSE,12.70 mm ID x 4700.00 mm

1шт.

6

6200125

SPROCKET

2шт.

7

87328528

SHUT-OFF VALVE

1шт.

8

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

9

88902

NUT,3/8"-16

11шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

87328931

PLATE

1шт.

12

87353780

DECAL

Warning, Crushing Hazard

1шт.

13

87343258

DECAL

Hyd. Transport Operation

1шт.

14

87353782

DECAL

Warning, Transport Hazard

1шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

17

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

7шт.

18

22510710

HOSE CLAMP

7шт.

19

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

20

84278123

SPACER

1шт.

21

280736

NUT,5/16"-18, GC

2шт.

22

280622

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

2шт.

23

396150A1

VALVE, CONTROL

1шт.

24

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

25

214389

PLUG,3/4" - 16 ORB

1шт.

26

06402750

BAR ASSY.

Hose Mount

1шт.
