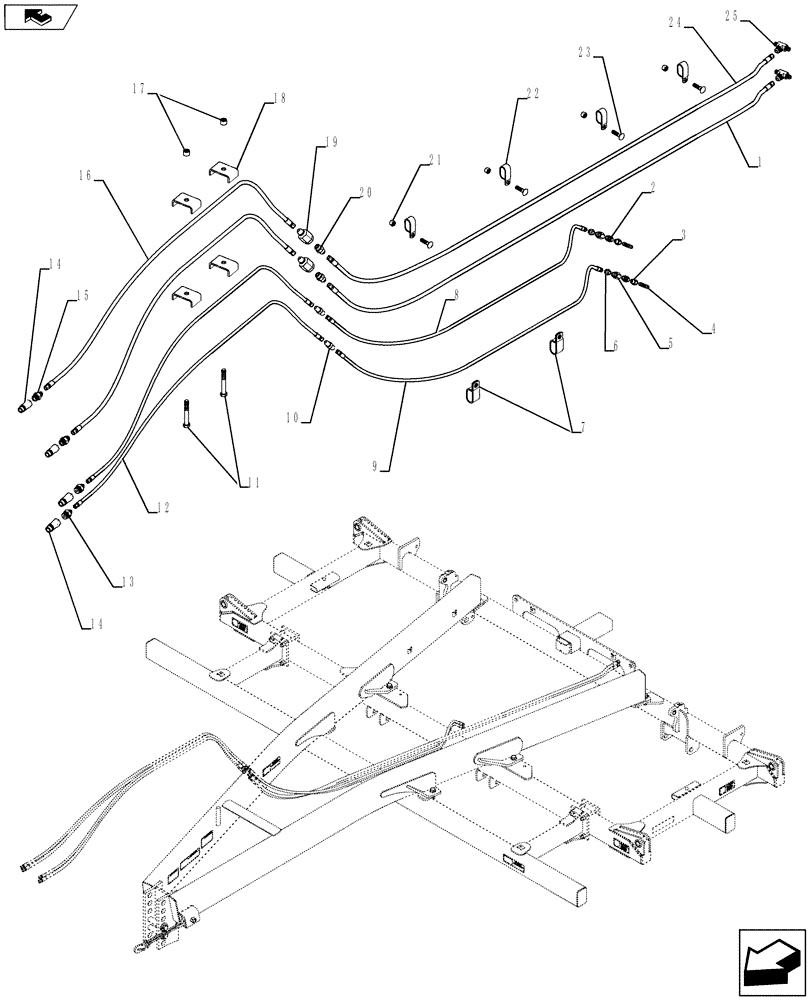

Запчасти Case IH 955 (35.100.01[01]) - MAIN/PULL FRAME HYDRAULICS 8 ROW (35) - HYDRAULIC SYSTEMS

1

1337376C1

HYDRAULIC HOSE

1шт.

2

25707534

ADAPTER

2шт.

3

87411460

REDUCER

2шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

5

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

6

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

7

22510700

HOSE CLAMP,15.86mm

2шт.

8

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

1шт.

9

810570C2

HYDRAULIC HOSE

1шт.

10

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

11

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

12

1284368C1

HYDRAULIC HOSE

2шт.

13

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

14

25705041

COUPLING

4шт.

15

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

16

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

2шт.

17

88902

NUT,3/8"-16

2шт.

18

06200125

HOSE CLAMP

4шт.

19

84269593

FILTER

2шт.

20

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

21

88902

NUT,3/8"-16

4шт.

22

22510710

HOSE CLAMP

4шт.

23

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

4шт.

24

91207C1

HYDRAULIC HOSE,12.70 mm ID x 3300.00 mm, SAE 100R1

1шт.

25

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.
