Запчасти Case IH 955 (35.100.04) - WING CYLINDER 8 - 12 ROW (35) - HYDRAULIC SYSTEMS

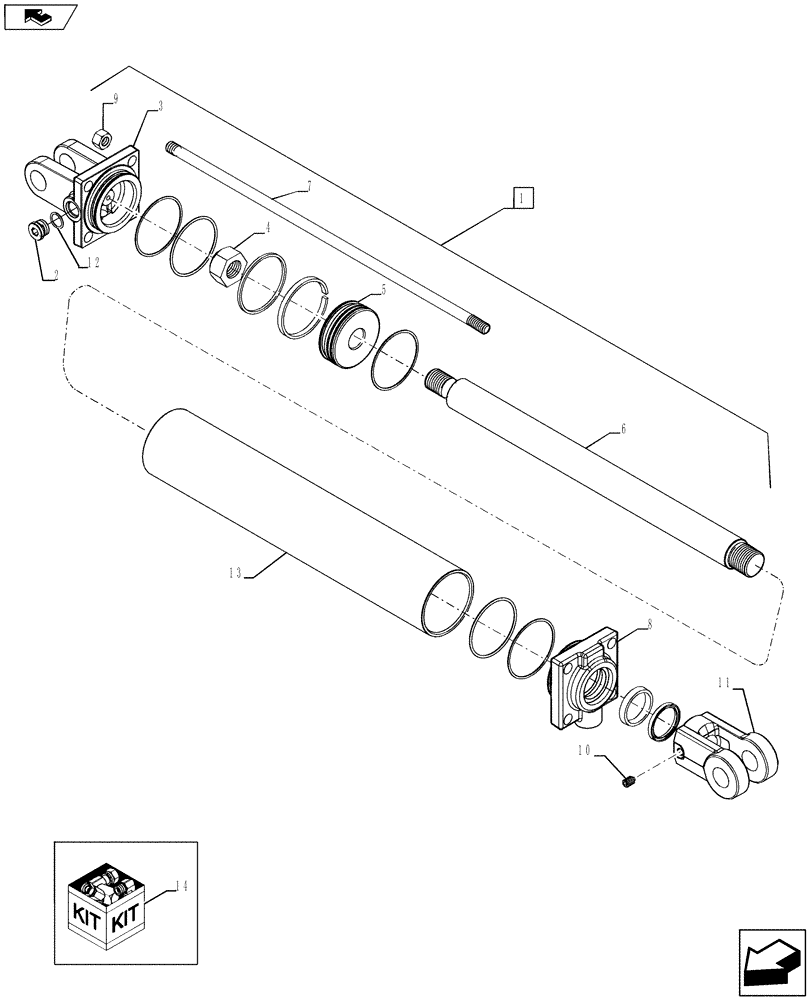

Схема запчастей Case IH 955 - (35.100.04) - WING CYLINDER 8 - 12 ROW (35) - HYDRAULIC SYSTEMS
14
home
10
6
8
1
3
11
5
9
13
4
12
2
7

Артикул

Название

Примечание

Количество

1

87505357

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

8 Row, 3.50" X 24.00", 3000PSI, Includes 12

1шт.

1

84341605

CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

12 Row, 4.00" X 36.00", Includes 13

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

87409430

HEAD

8 Row, 3.50" X 24.00", 3000PSI

1шт.

3

87409439

HEAD

12 Row, 4.00" X 36.00"

1шт.

4

87314800

LOCK NUT

8 Row, 3.50" X 24.00", 3000PSI

1шт.

4

8657

NUT

12 Row, 4.00" X 36.00"

1шт.

5

23548

PISTON

8 Row, 3.50" X 24.00", 3000PSI

1шт.

5

84407299

PISTON

12 Row, 4.00" X 36.00"

1шт.

6

87582276

SHAFT

8 Row, 3.50" X 24.00", 3000PSI

1шт.

6

84407298

ROD

12 Row, 4.00" X 36.00"

1шт.

7

87409493

BOLT

8 Row, 3.50" X 24.00", 3000PSI

4шт.

7

87410779

TIE-ROD

12 Row, 4.00" X 36.00"

4шт.

8

87409417

HEAD

8 Row, 3.50" X 24.00", 3000PSI

1шт.

8

87409392

HEAD

12 Row, 4.00" X 36.00"

1шт.

9

25-1110

NUT,5/8"-18, G5

8 Row, 3.50" X 24.00", 3000PSI

8шт.

9

408

NUT,5/8" - 18, Gr 5

12 Row, 4.00" X 36.00"

8шт.

10

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

8 Row, 3.50" X 24.00", 3000PSI

1шт.

10

84212867

SET SCREW

12 Row, 4.00" X 36.00"

1шт.

11

87409387

CLEVIS,1 -1/4" - 12

8 Row, 3.50" X 24.00", 3000PSI

1шт.

11

84407278

CLEVIS

12 Row, 4.00" X 36.00"

1шт.

12

8 Row, 3.50" X 24.00", 3000PSI, Included In 87505357

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

12 Row, 4.00" X 36.00"

1шт.

13

87582277

BARREL,3.5 mm DIA x 24 mm L

8 Row, 3.50" X 24.00", 3000PSI

1шт.

13

12 Row, 4.00" X 36.00"

1шт.

14

84137861

SEAL KIT

8 Row, 3.50" X 24.00", 3000PSI

1шт.

14

25834024

SEAL KIT

12 Row, 4.00" X 36.00"

1шт.

Выбрано товаров: 27
