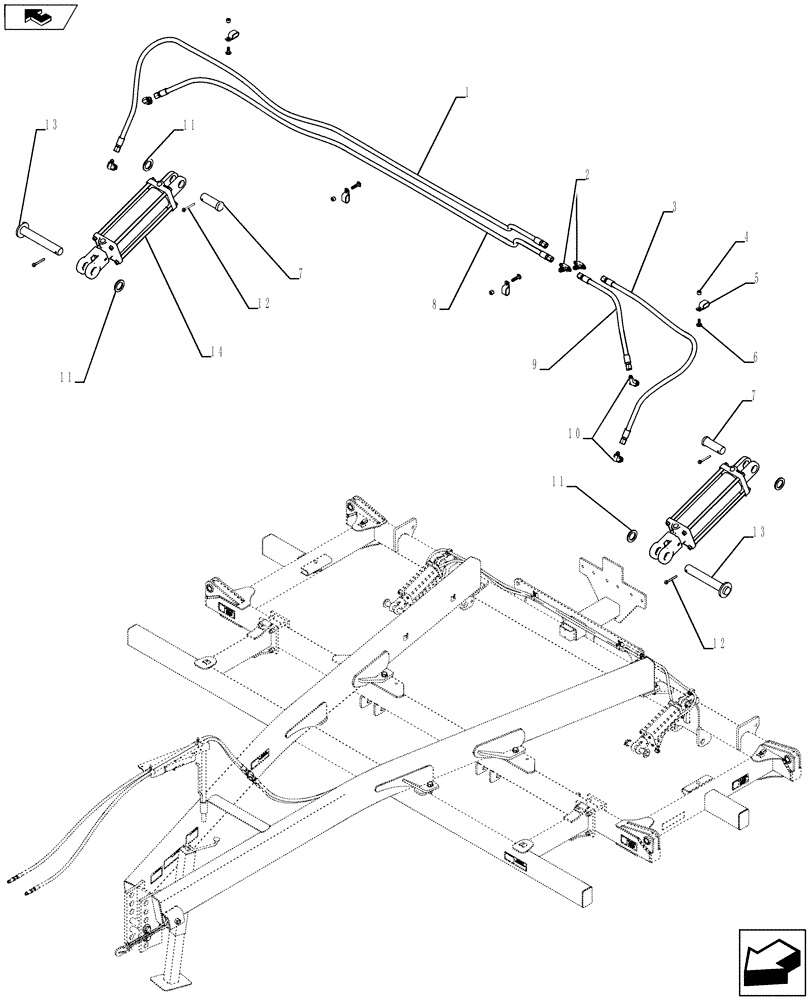

Запчасти Case IH 955 (35.100.03[01]) - FRAME LIFT HYDRAULICS 8 ROW (35) - HYDRAULIC SYSTEMS

1

129671C2

HYDRAULIC HOSE

1шт.

2

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

3

129672C2

HYDRAULIC HOSE

1шт.

4

88902

NUT,3/8"-16

1шт.

5

22510700

HOSE CLAMP,15.86mm

1шт.

6

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

7

84156993

PIN

2шт.

8

813006C2

HYDRAULIC HOSE

1шт.

9

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

1шт.

10

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

11

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

4шт.

12

88182

COTTER PIN,1/4" OD x 2" L

4шт.

13

84339323

PIN

2шт.

14

84341603

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

2шт.
