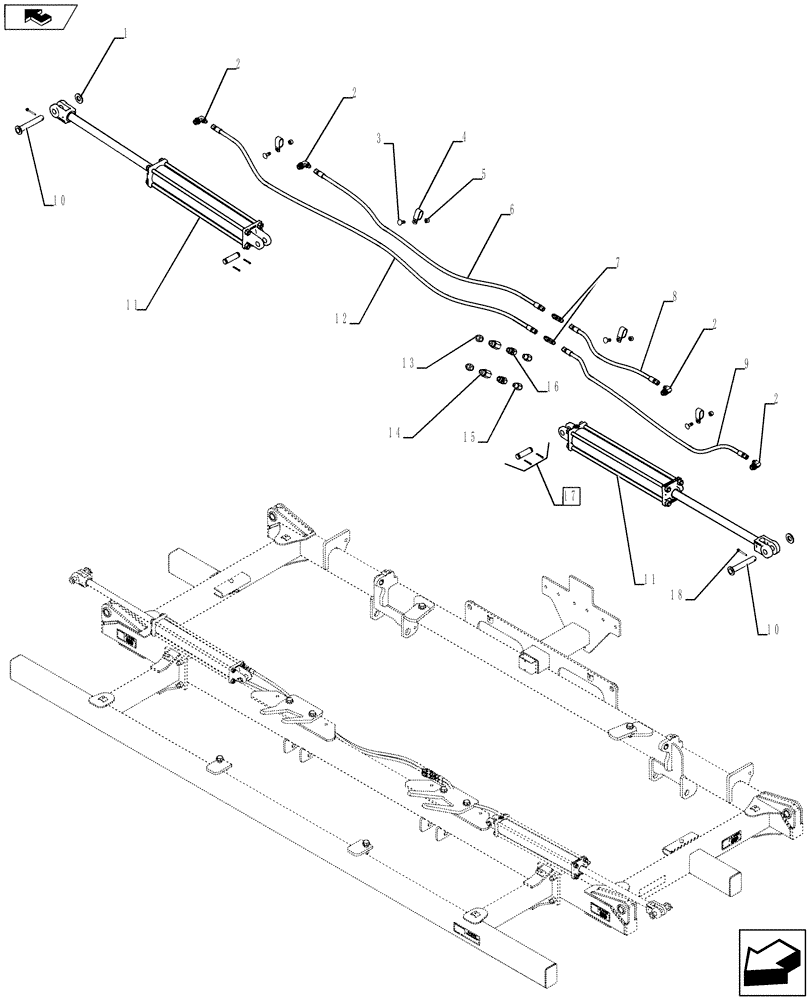

Запчасти Case IH 955 (35.100.02[02]) - WING FOLD HYDRAULICS 8 ROW (35) - HYDRAULIC SYSTEMS

1

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

2шт.

2

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

3

22510700

HOSE CLAMP,15.86mm

1шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

5

88902

NUT,3/8"-16

1шт.

6

1254574C2

HYDRAULIC HOSE

1шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

8

1336840C1

HYDRAULIC HOSE

1шт.

9

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

1шт.

10

14816466

CLEVIS,44.45mm OD x 164.08mm L

2шт.

11

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

2шт.

25335242R

REMAN-HYD CYLINDER

950 Nutri Till'R (1/12)

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

12

810570C2

HYDRAULIC HOSE

1шт.

13

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

14

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

15

87411460

REDUCER

2шт.

16

25707534

ADAPTER

2шт.

17

25890100

KIT

1.00 Cylinder Pin and Cotter Pin Kit

2шт.

18

88182

COTTER PIN,1/4" OD x 2" L

2шт.
