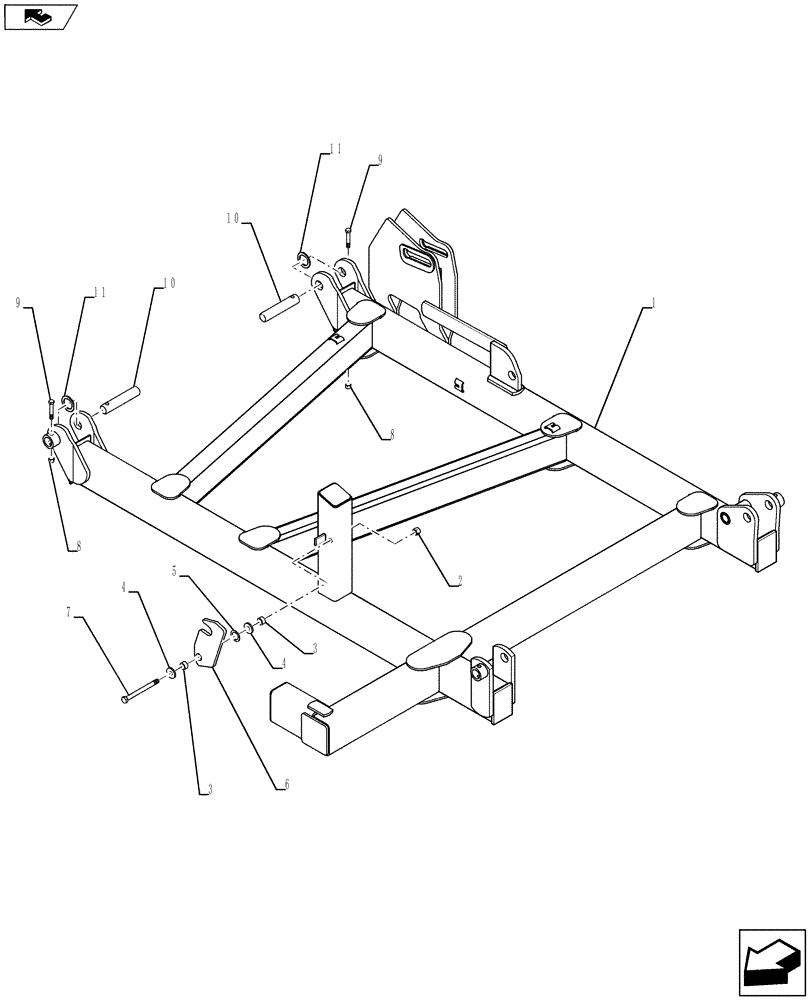

Запчасти Case IH 955 (39.100.04) - INNER WING FRAME 16 ROW (39) - FRAMES AND BALLASTING

1

84396134

FRAME

LH, Includes 11

1шт.

1

84396137

FRAME

RH, Includes 11

1шт.

2

85700693

NUT,5/8" - 11, Gr C

1шт.

3

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

4

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

5

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1шт.

6

06220130

BRACKET

1шт.

7

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

1шт.

8

88871

NUT,1/2"-13, GC

2шт.

9

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

10

84310052

PIN

2шт.

11

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

2шт.

12

87653276

DECAL

Case IH Decal, Not Shown

1шт.
