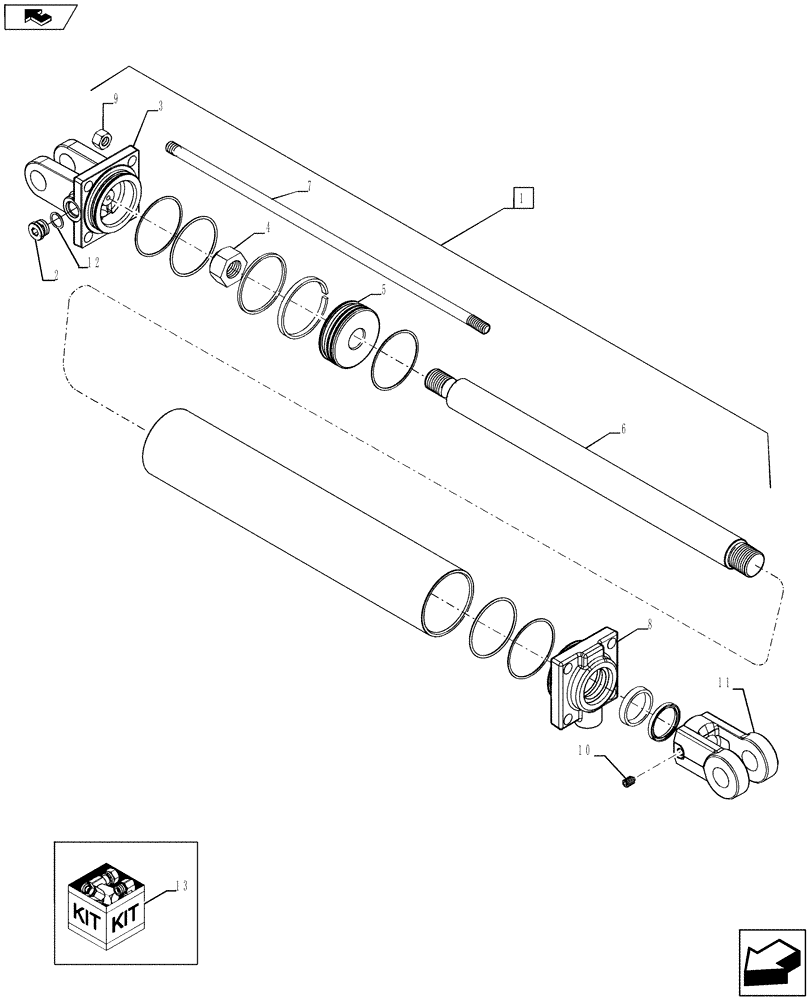

Запчасти Case IH 955 (35.100.05) - INNER WING CYLINDER 16 ROW (35) - HYDRAULIC SYSTEMS

1

84341605

CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

12 Row, 4.00" X 36.00"

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

87409439

HEAD

1шт.

4

8657

NUT

1шт.

5

84407299

PISTON

1шт.

6

84407298

ROD

1шт.

7

87410779

TIE-ROD

4шт.

8

87409392

HEAD

1шт.

9

408

NUT,5/8" - 18, Gr 5

4шт.

10

84212867

SET SCREW

1шт.

11

84407278

CLEVIS

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

25834024

SEAL KIT

1шт.
