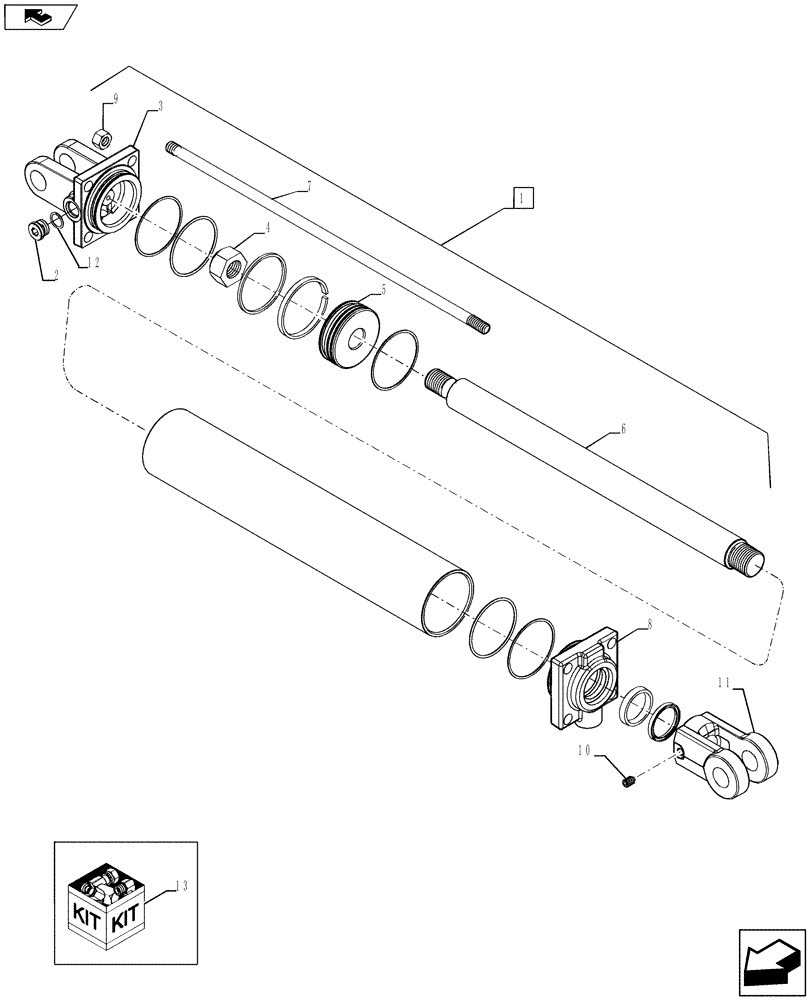

Запчасти Case IH 955 (35.100.06) - OUTER WING CYLINDER 16 ROW (35) - HYDRAULIC SYSTEMS

1

84366455

CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.00" X 24.00"

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

84407290

CLEVIS

1шт.

4

87314800

LOCK NUT

1шт.

5

87635232

PISTON

1шт.

6

84407293

ROD

1шт.

7

84155448

TIE-ROD

4шт.

8

8952

CYLINDER END CAP

1шт.

9

280963

NUT,Nut, 1/2-20 GR 5 ZND

8шт.

10

84212867

SET SCREW

1шт.

11

84221842

CLEVIS

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

25833007

SEAL KIT

1шт.
