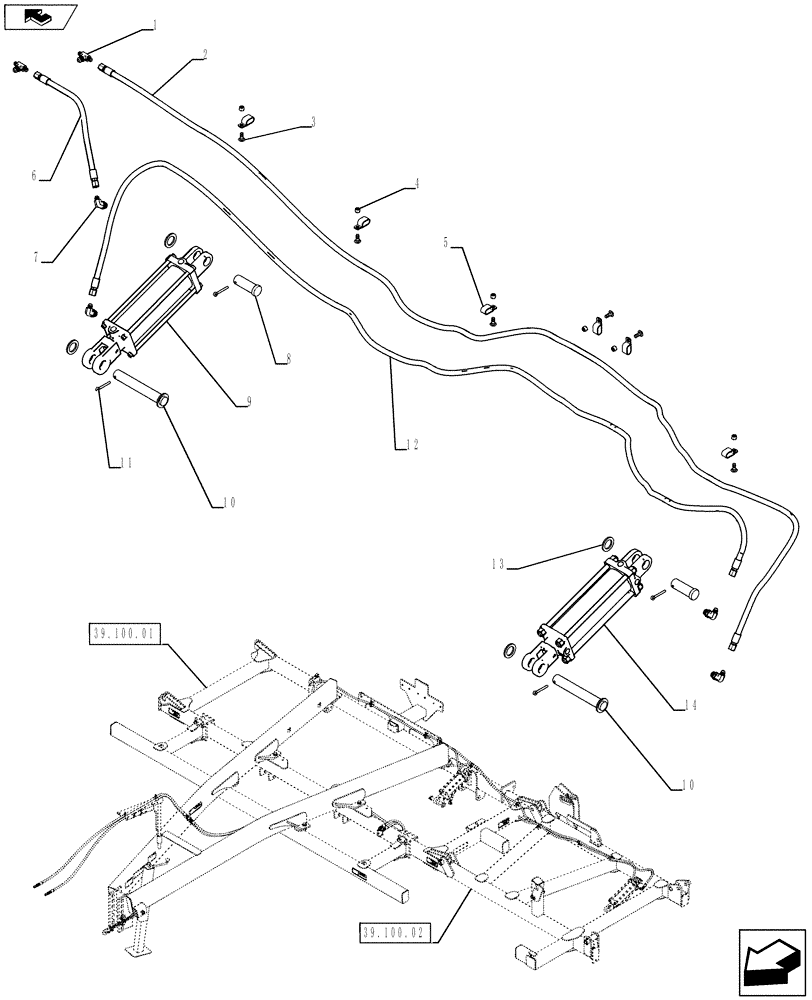

Запчасти Case IH 955 (35.100.03) - FRAME LIFT HYDRAULICS 12- 16 ROW (35) - HYDRAULIC SYSTEMS

1

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

2

139655C2

HYDRAULIC HOSE

LH 12 - 16 Row

1шт.

2

129764C2

HYDRAULIC HOSE

RH 12 - 16 Row

1шт.

3

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

1шт.

4

88902

NUT,3/8"-16

1шт.

5

22510700

HOSE CLAMP,15.86mm

1шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

LH 12 - 16 Row

1шт.

6

813006C2

HYDRAULIC HOSE

RH 12 - 16 Row

1шт.

7

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

8

84156993

PIN

2шт.

9

84341603

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

1шт.

10

14820444

SPECIAL PIN

1шт.

11

88182

COTTER PIN,1/4" OD x 2" L

2шт.

12

139655C2

HYDRAULIC HOSE

LH 12 - 16 Row

1шт.

12

1284303C1

HYDRAULIC HOSE

RH 12 - 16 Row

1шт.

13

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

4шт.

14

84344027

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

1шт.
