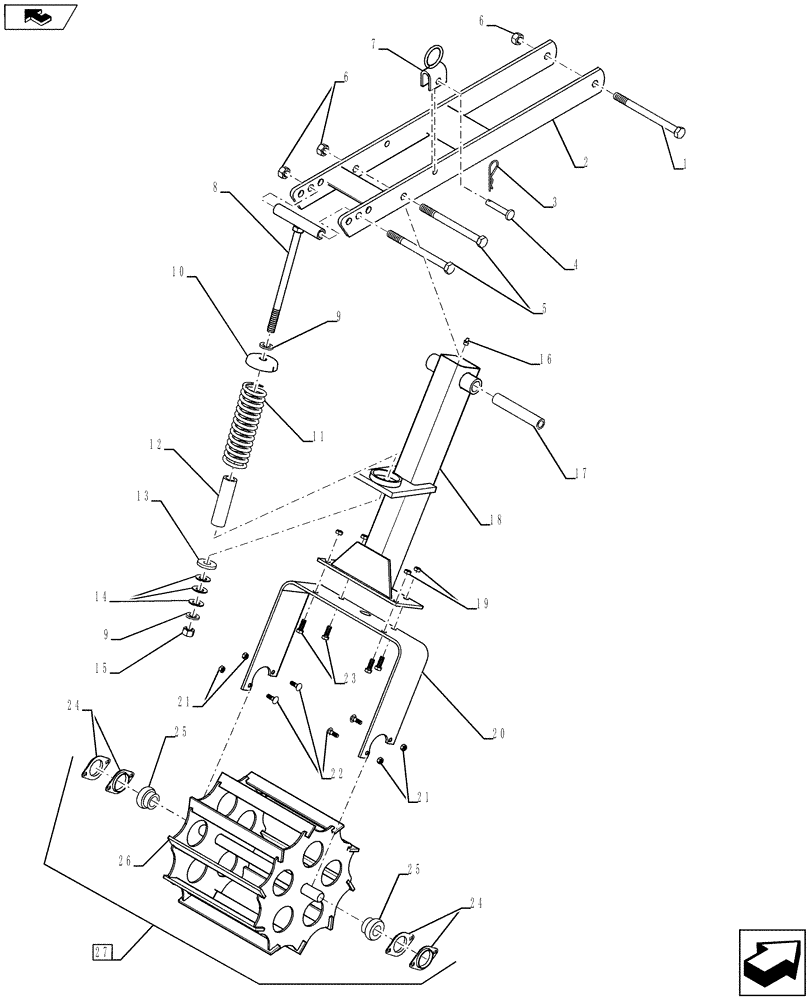

Запчасти Case IH 950 (75.200.07[01]) - BERM CONDITIONER BASKET W/FLAT BARS (75) - SOIL PREPARATION

1

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

2

87529732

FRAME

1шт.

3

14720411

COTTER PIN

PIN, COTTER

1шт.

4

14808201

CLEVIS PIN

1шт.

5

87493276

BOLT

2шт.

6

86992216

NUT

3шт.

7

04691569

LINKAGE YOKE

1шт.

8

04691595

SPECIAL BOLT

1шт.

9

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

2шт.

10

87395343

SPRING CUP

1шт.

11

24131202

COMPRESSION SPRING

1шт.

12

09662004

TUBE

1шт.

13

495-81028

WASHER,21/32" x 1 1/2" x .240"

1шт.

14

17511000

BELLEVILLE WASHER

2шт.

15

86992216

NUT

1шт.

16

87645504

FITTING

1шт.

17

04691597

TUBE,0.656" ID, 1" OD, 5.69" Length

1шт.

18

04691590

ARM

1шт.

19

86992213

NUT

4шт.

20

04691555

BRACKET

1шт.

21

86992212

NUT

4шт.

22

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

24

21892300

BEARING HOUSING,52 mm ID x 8.6 mm

4шт.

25

21801601

FLANGED BEARING,1" ID

2шт.

26

87407861

BASKET ASSY

1шт.

27

87443751

BASKET ASSY

Includes 20-22, 24-26

1шт.

28

87385186

ARM

Includes 2, 5-6, 8-18, Not Called Out

1шт.
