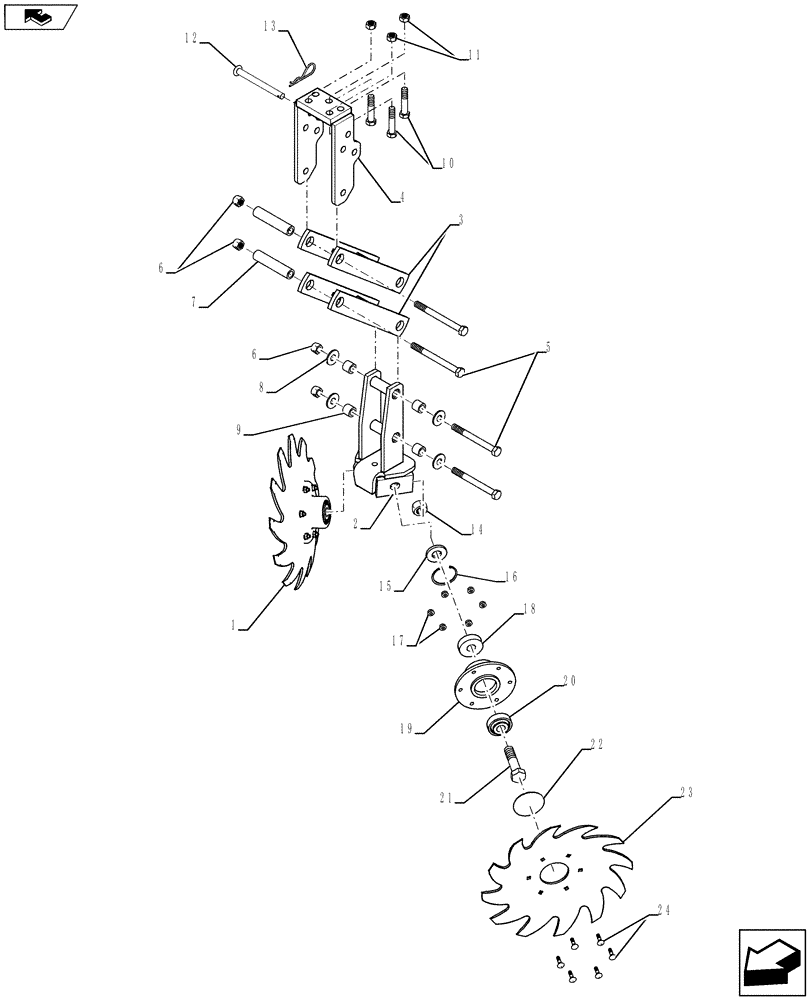

Запчасти Case IH 950 (75.200.05) - ROW CLEANER ASSEMBLY (75) - SOIL PREPARATION

1

87413889

HUB ASSY.

LH, Includes 16, 17, 19, 20, 23, 24

1шт.

1

87413890

HUB ASSY.

RH, Includes 16, 17, 19, 20, 23, 24

1шт.

2

04694062

MOUNTING PARTS

1шт.

3

04694063

LIFT LINK

2шт.

4

04694044

MOUNTING PARTS

1шт.

5

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

6

88871

NUT,1/2"-13, GC

4шт.

7

04694043

TUBE,0.563" ID, 0.875" OD, 4.06" Length

2шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

9

04694059

BUSHING

4шт.

10

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

3шт.

11

86992215

LOCK NUT,1/2"-13, GC

3шт.

12

14808400

SPECIAL PIN,12.7mm OD x 138.76mm L

1шт.

13

14720411

COTTER PIN

PIN, COTTER

1шт.

14

429-1012

NUT,3/4"-10, G8

1шт.

15

17413011

WASHER

1шт.

16

87413888

SNAP RING

1шт.

17

231-5344

FLANGE NUT,Flg, 1/4"-20

6шт.

18

87413887

BEARING

1шт.

19

87413886

HUB

1шт.

20

87413887

BEARING

1шт.

21

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

22

87413883

CAP

1шт.

23

87413884

TILLAGE BLADE

1шт.

24

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

6шт.
