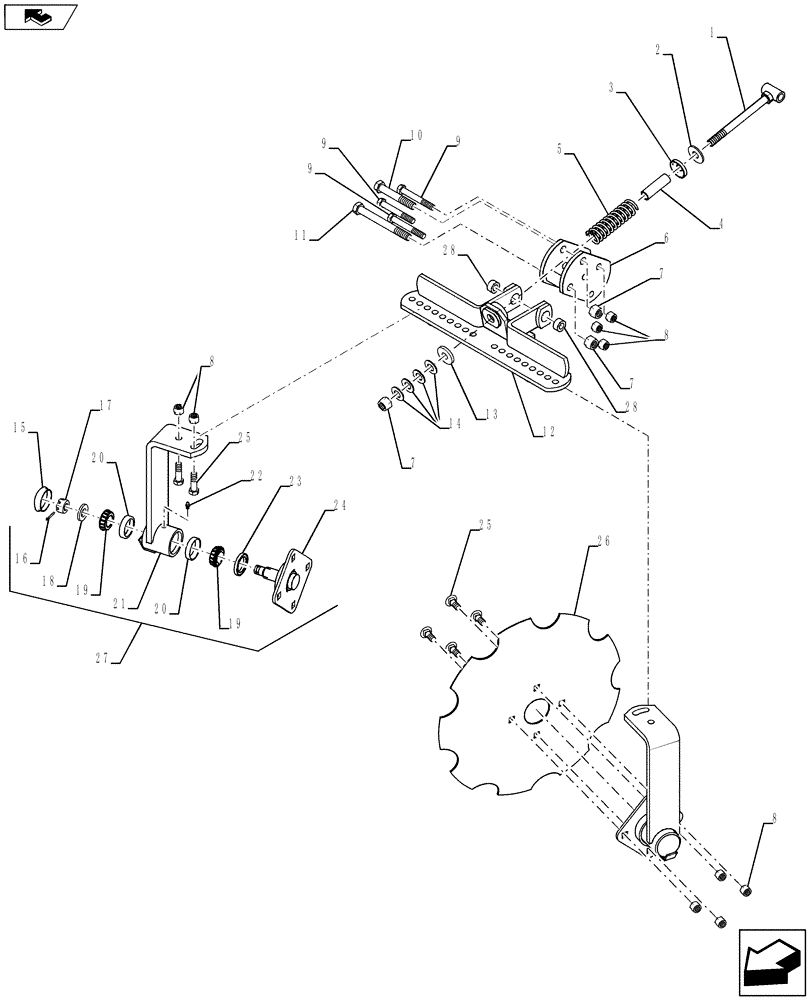

Запчасти Case IH 950 (75.200.04) - SEALER ASSEMBLY NOTCHED (75) - SOIL PREPARATION

1

04693150

SPECIAL BOLT

1шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

3

17506020

CUP WASHER,16.66mm ID x 44.45mm OD x 1.52mm Thk

1шт.

4

04693158

TUBE

1шт.

5

24120701

COMPRESSION SPRING

1шт.

6

04693195

MOUNTING PARTS

1шт.

7

85700693

NUT,5/8" - 11, Gr C

3шт.

8

88871

NUT,1/2"-13, GC

9шт.

9

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

3шт.

10

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

11

84009

BOLT

1шт.

12

84303996

ARM

1шт.

13

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

14

17511000

BELLEVILLE WASHER

4шт.

15

28420021

CAP

1шт.

16

80755

COTTER PIN,1/8" OD x 1" L

1шт.

17

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

18

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

1шт.

19

463911R91

ROLLER BEARING,1" ID x 0.58"

2шт.

20

572564R1

BEARING CUP

2шт.

21

84304050

ARM

Includes 20, 22

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

1шт.

23

21931375

SEAL

1шт.

24

09103120

DISC

1шт.

25

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

4шт.

26

84380560

DISK HARROW

Notched Disc, MC FLT CNTER, 460 X 63.5 X 3 (Shown)

1шт.

26

84380555

DISK HARROW

Solid Disc, MC, 460 X 63.5 X 3

1шт.

27

84296819

ARM

Includes Ref 15 - 24

1шт.

28

84419989

BUSHING,16.26mm ID x 25.4mm OD x 25.4mm L

2шт.
