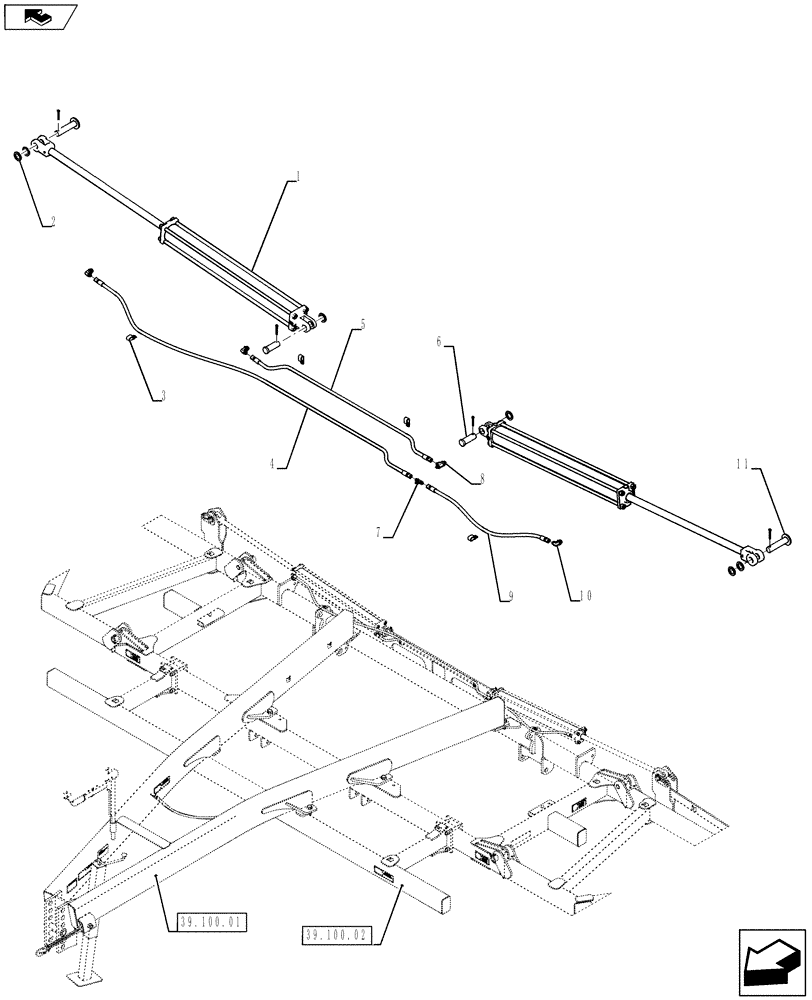

Запчасти Case IH 950 (35.100.02[01]) - WING FOLD HYDAULICS 12 ROW (35) - HYDRAULIC SYSTEMS

1

84341605

CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

2шт.

2

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

3

22510700

HOSE CLAMP,15.86mm

4шт.

4

1284368C1

HYDRAULIC HOSE

1шт.

5

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

1шт.

6

84156993

PIN

2шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

87564739

TEE

1шт.

9

1270453C1

HYDRAULIC HOSE

1шт.

10

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

11

84349166

PIN

2шт.
