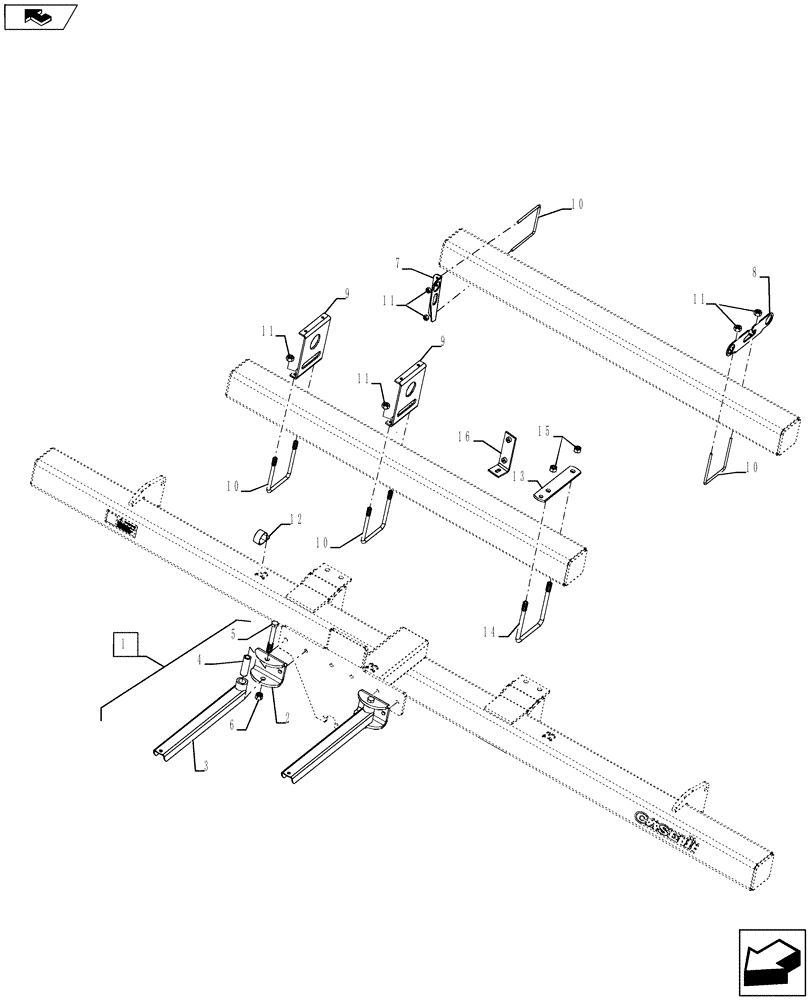

Запчасти Case IH 940 (88.100.01) - AA MOUNTIN ASSEMBLY (88) - ACCESSORIES

1

04660300

MOUNTING PARTS

Extension Mount Assembly

2шт.

2

04660320

BAR ASSY.

Bracket

1шт.

3

04660330

CHANNEL

Mount, Extension Pivot

1шт.

4

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

5

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

6

86992217

NUT

3/4 Stover

1шт.

7

84261534

BRACKET, SUPPORTING

AA. Line Routing

1шт.

8

84261535

BRACKET, SUPPORTING

AA. Coiling 12"

1шт.

9

84262615

BRACKET, SUPPORTING

NH3 Cooler Mount

2шт.

10

16309110

U-BOLT

3/8 x 6 x 6

3шт.

11

88902

NUT,3/8"-16

6шт.

12

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

13

84331651

PLATE

Bracket, Manifold

1шт.

14

87427163

U-BOLT

BOLT "U" 5/8 x 6 x 7

1шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

16

04681830

BRACKET

Gauge Mount

1шт.
