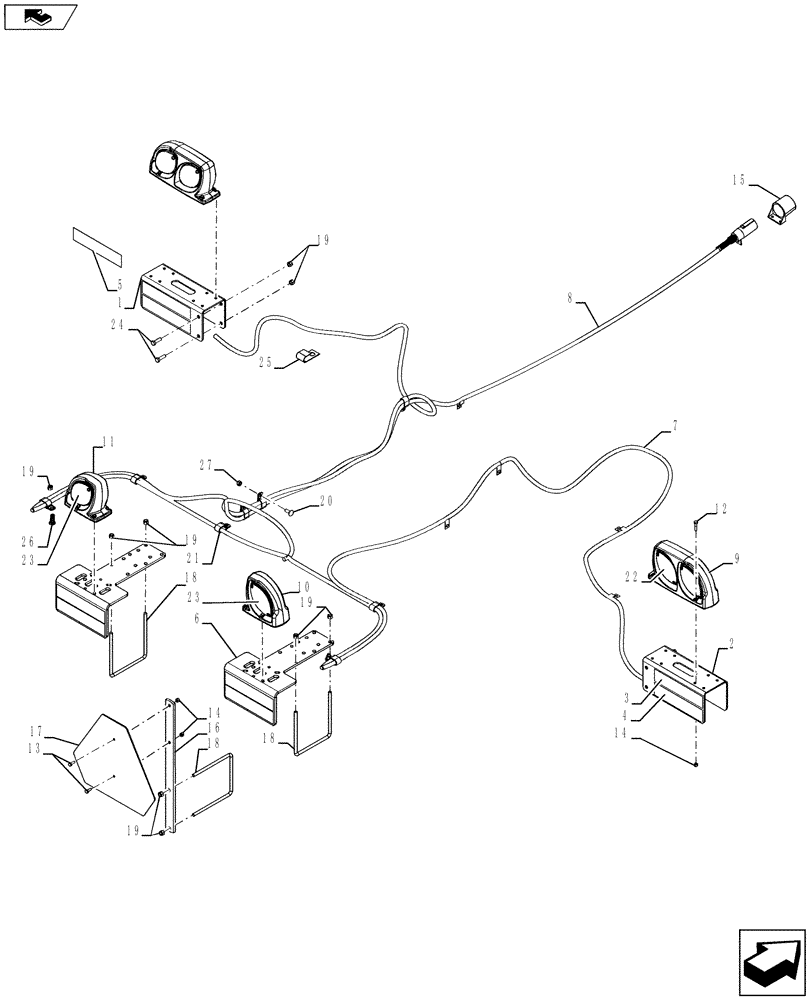

Запчасти Case IH 940 (55.404.01) - TAILLIGHT ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84257577

BRACKET, SUPPORTING

Left Side, Light Mount, With Decals

1шт.

2

84257579

BRACKET, SUPPORTING

Right Side, Light Mount, With Decals

1шт.

3

311865A1

REFLECTOR

Fluorescent Orange 2x9

1шт.

4

311863A1

REFLECTOR

Retroreflective Red 2x9

1шт.

5

311864A1

REFLECTOR

Retroreflective Amber 2x9

1шт.

6

87459351

BRACKET

Light, Center

2шт.

7

84250419

WIRE HARNESS

Rear

1шт.

8

84250418

WIRE HARNESS

Front

1шт.

9

87519394

LIGHT,12V, 21W, Amber

Dual Amber Light

2шт.

10

87520382

LIGHT

Single Red Right Side

1шт.

11

87519398

LIGHT

Single Red Left Side

1шт.

12

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

16шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

14

87034810

NUT,1/4"-20, GA

18шт.

15

27601214

HOLDER

Light Wiring Harness Plug

1шт.

16

06000099

BRACE

21.20x1.50

1шт.

17

311860A1

EMBLEM

Slow Moving Vehicle

1шт.

18

16309110

U-BOLT

3/8 X 6 X 6 U-BOLT

3шт.

19

88902

NUT,3/8"-16

12шт.

20

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

22510700

HOSE CLAMP,15.86mm

Coated

10шт.

22

84178558

LENS

Amber

8шт.

23

84178560

LENS

Red

2шт.

24

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

25

134579

WIRE CLAMP,J

Plastic Coated

15шт.

26

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

27

9628503

NUT,3/8"-16, G5

8шт.

28

84405202

WIRE HARNESS

Extension

1шт.

29

12574115

NUT

Not Shown

2шт.

30

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

Not Shown

2шт.

31

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

Not Shown

2шт.
