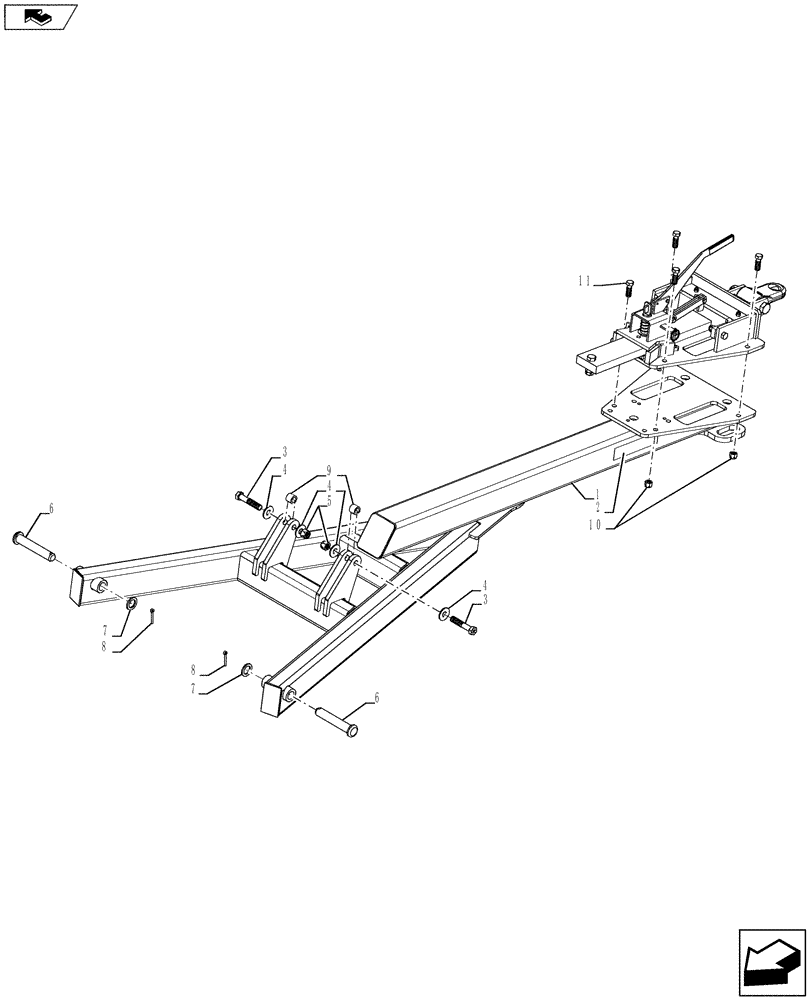

Запчасти Case IH 940 (39.110.03) - REAR HITCH FRAME (39) - FRAMES AND BALLASTING

1

84245387

U-FRAME

Main

1шт.

2

311864A1

REFLECTOR

Retroreflective Amber 2X9

2шт.

3

9825647

BOLT,Hex, 3/4" - 10 x 4", Gr 8

2шт.

4

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

5

280375

NUT,3/4"-10, GC

2шт.

6

87022088

PIN

Headed 31.75mm X 177.8mm GR5 ZND

2шт.

7

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

33.3mm X 50.4mm

2шт.

8

88182

COTTER PIN,1/4" OD x 2" L

2шт.

9

87397246

BUSHING,20.62mm ID x 31.75mm OD x 25.4mm L

25.4mm Long

2шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

11

85700693

NUT,5/8" - 11, Gr C

4шт.
