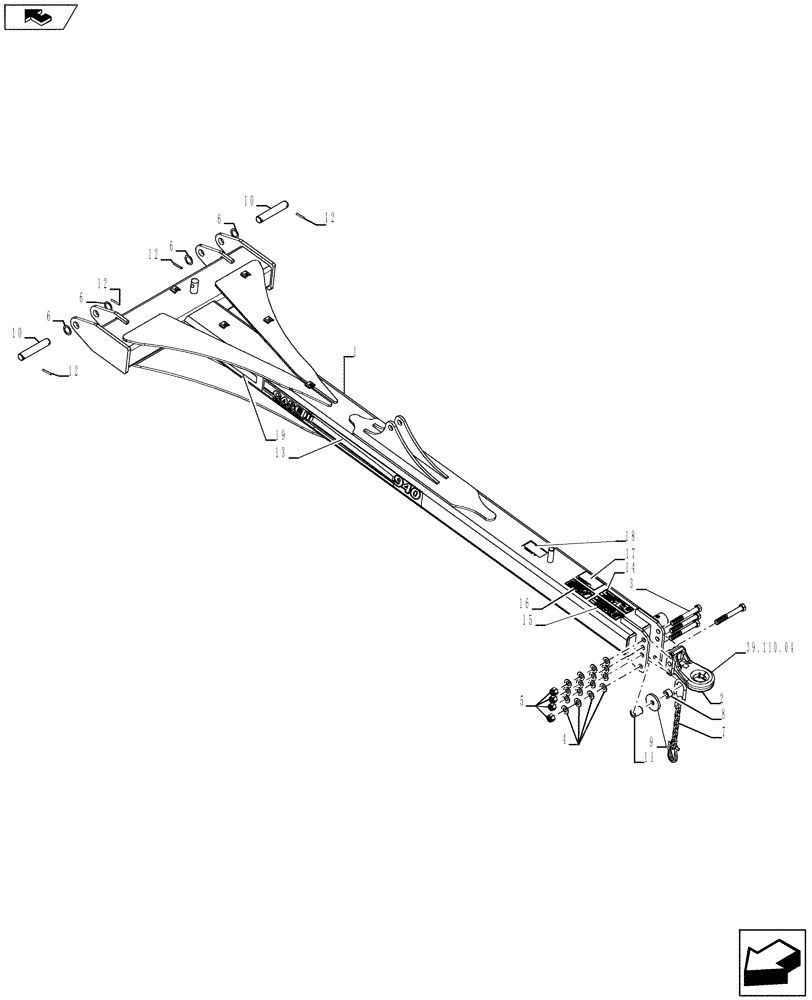

Запчасти Case IH 940 (39.110.01) - PULL HITCH (39) - FRAMES AND BALLASTING

1

84303651

U-FRAME

Hitch Assembly With Decals

1шт.

2

84303598

HITCH

CAT V, 3 Hole

1шт.

3

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

4шт.

4

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

16шт.

5

9626600

NUT,1"-8, GC

4шт.

6

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

4шт.

7

84238703

CHAIN (AG)

Safety, 60,600LB 1778-1905mm Long

1шт.

8

04681211

BUSHING

28.4mm Long 44.45mm OD 26.16mm ID

1шт.

9

06400065

WASHER

1" Heavy

1шт.

10

84145812

PIN

225.0mm Long 41.28mm OD

2шт.

11

84344010

BUSHING

16.27mm OD 60.33mm ID 14GA.

1шт.

12

84158586

COILED PIN

4шт.

13

84244094

DECAL

940 Nutri-Placer Right Side

1шт.

13

84244093

DECAL

940 Nutri-Placer Left Side

1шт.

14

87673548

DECAL

Danger Over Head Electrical

1шт.

15

87672316

DECAL

Towing Hazard

1шт.

16

87668160

DECAL

Transport & Turning Hazard

1шт.

17

18534282

WARNING DECAL

Hyd.

1шт.

18

18534228

DECAL

Caution Pull Type

1шт.

19

311864A1

REFLECTOR

Retroreflective Amber

2шт.

20

32252000

JACK ASSY.

5000lb

1шт.
