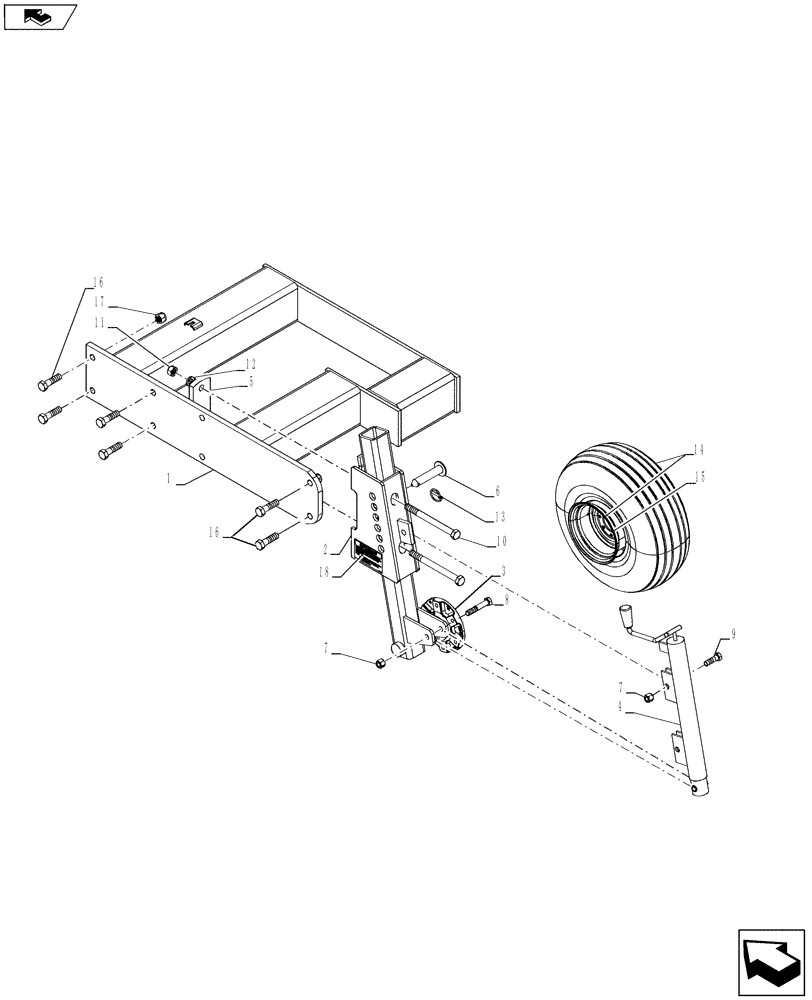

Запчасти Case IH 940 (39.100.05) - STUB WING 65 (39) - FRAMES AND BALLASTING

1

84251812

U-FRAME

Stub Wing

1шт.

2

84410940

FRAME

Gauge Wheel

1шт.

3

28071001

HUB ASSY.

710 - 6 Bolt

1шт.

4

32253000

JACK ASSY.

5000LB

1шт.

5

09576610

LINKAGE

Flat

1шт.

6

14816348

PIN,25.4mm OD x 133.35mm L

1 x 4.25" Weldment

1шт.

7

6395

LOCK NUT,5/8"-11, GB

2шт.

8

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

9

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

10

86502676

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

2шт.

11

280954

NUT,3/4"-10, G5

2шт.

12

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

13

270184

LINCH PIN,6.35mm OD

Klik

1шт.

14

NSS

NOT SOLD SEPARAT

20.5-8 x 10 Tire And Wheel

1шт.

15

10106202

WHEEL ASSY.

10 x 6 Silver Wheel

1шт.

16

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

6шт.

17

280375

NUT,3/4"-10, GC

6шт.

18

84252093

DECAL

Info, Jack, Pull Pin

2шт.
