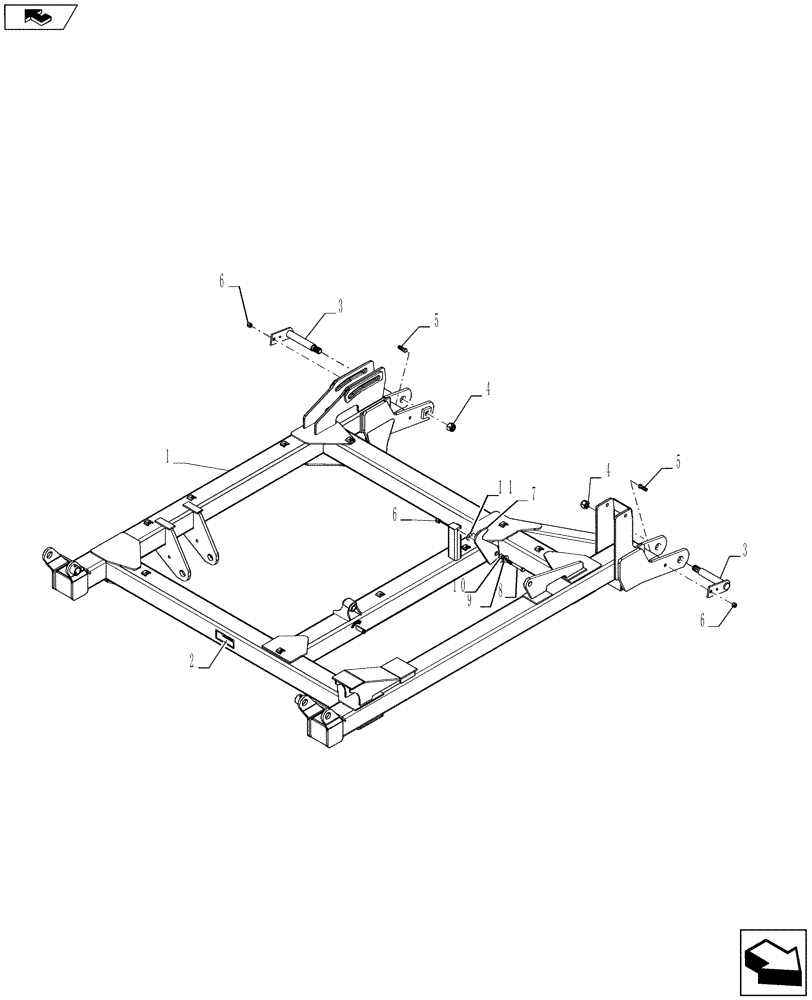

Запчасти Case IH 940 (39.100.02) - INNER WING (39) - FRAMES AND BALLASTING

1

84263957

U-FRAME

Inner Wing Left Side With Decals

1шт.

1

84263967

U-FRAME

Inner Wing Right Side With Decals

1шт.

2

18534227

DANGER DECAL

Crushing Hazard

1шт.

3

84250941

PIN

Flag 1.75"

2шт.

4

86614103

NUT,1 1/4"-7, GC

2шт.

5

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

2шт.

6

85700693

NUT,5/8" - 11, Gr C

3шт.

7

84126353

PLATE

Outer, Wing Gravity Latch

1шт.

8

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

9

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

10

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

1шт.

11

17618030

BUSHING

1-1/8 Machinery Bushing

2шт.
