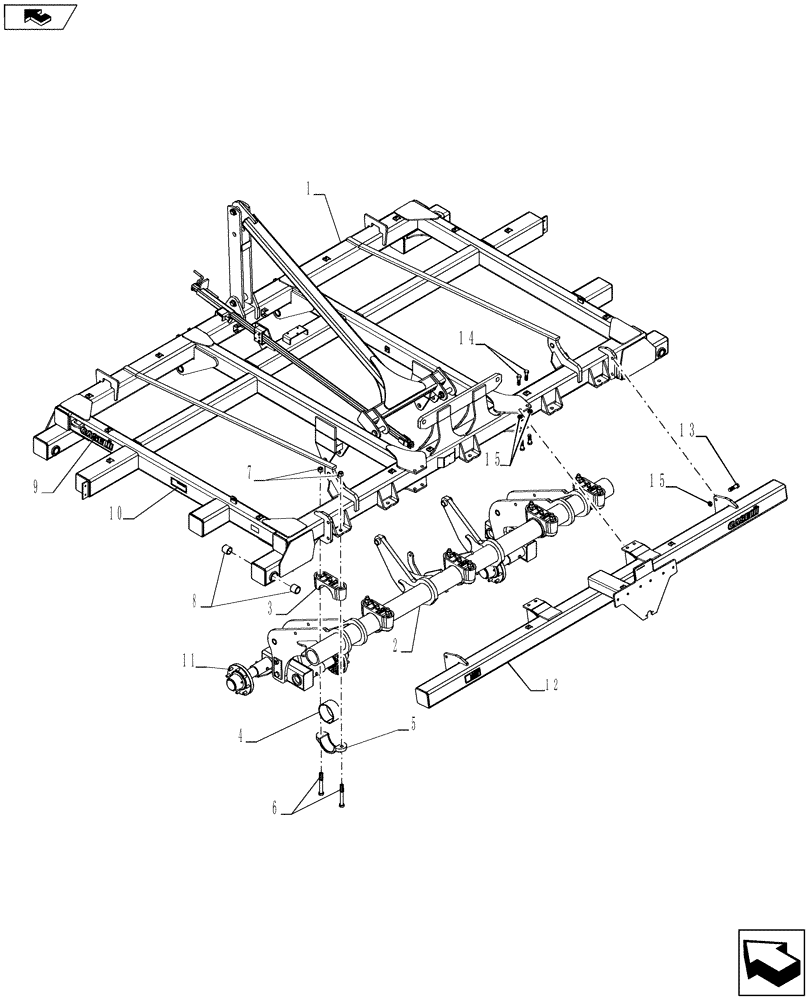

Запчасти Case IH 940 (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

84410961

FRAME

Main Frame

1шт.

2

84242465

ROCKSHAFT

Rock Shaft w/o Tandems

1шт.

3

84141918

CASTING

RockShaft Bearing

5шт.

4

87703164

BUSHING,143mm ID x 155.7mm OD x 76.2mm L

Rockshaft 443mm Long

5шт.

5

87715831

BEARING CAP

Casting

5шт.

6

87490802

BOLT

7/8-9X7.00 GR 5

10шт.

7

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8-9 HEX P/T DIR GR C

10шт.

8

84239758

BUSHING

2.25 x 1.75 x 2

8шт.

9

87653276

DECAL

CIH

2шт.

10

18534227

DANGER DECAL

Crushing Hazard

2шт.

11

28560803

HUB ASSY.

8 Bolt Hub And Spindle Assy.

4шт.

12

84262642

U-FRAME

With Decals

1шт.

13

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

4шт.

14

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

15

280375

NUT,3/4"-10, GC

12шт.
