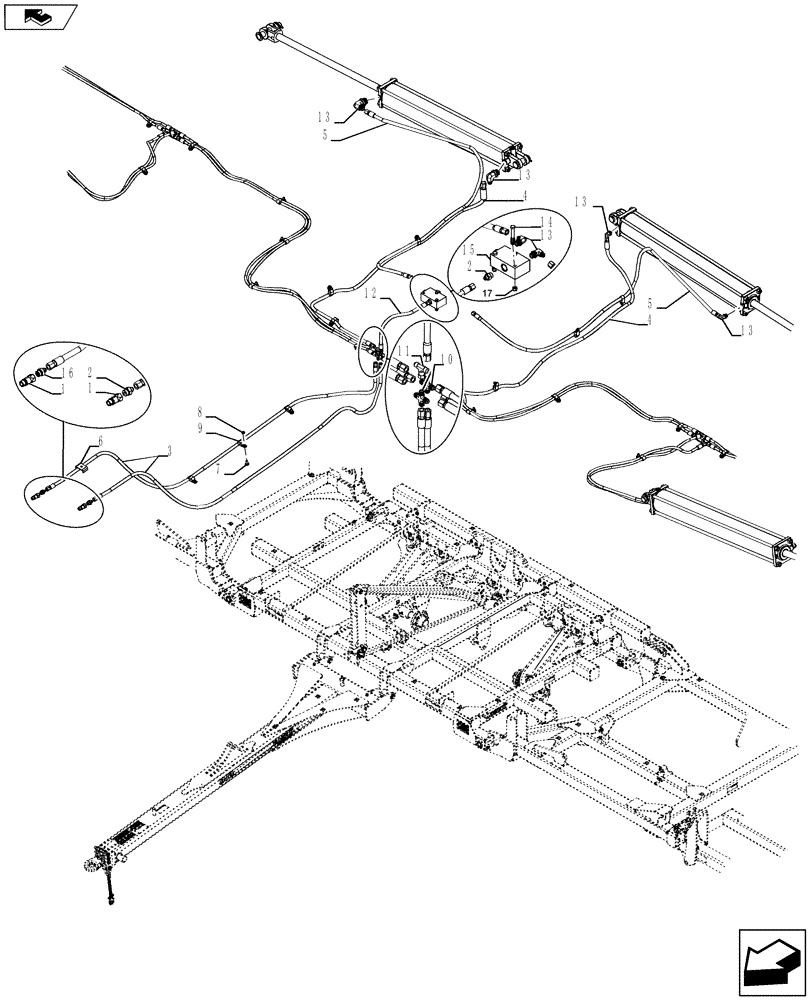

Запчасти Case IH 940 (35.100.04) - FOLD HYDRAULIC MAIN FRAME (35) - HYDRAULIC SYSTEMS

1

25705041

COUPLING

Male ISO-3/4SAEF HYD

2шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

3

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8 x 225"

2шт.

4

139654C2

HYDRAULIC HOSE

3/8 x 125" Coiled

2шт.

5

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

2шт.

6

06200125

HOSE CLAMP

2шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

13шт.

8

88902

NUT,3/8"-16

3/8 NC

16шт.

9

22510700

HOSE CLAMP,15.86mm

5/8 "

13шт.

10

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

11

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

12

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

1шт.

13

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

14

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

15

25401258

DIVIDER ASSY.

1шт.

16

1337104C1

FITTING

Outer Wing Hyd Line

1шт.

17

88902

NUT,3/8"-16

3шт.
