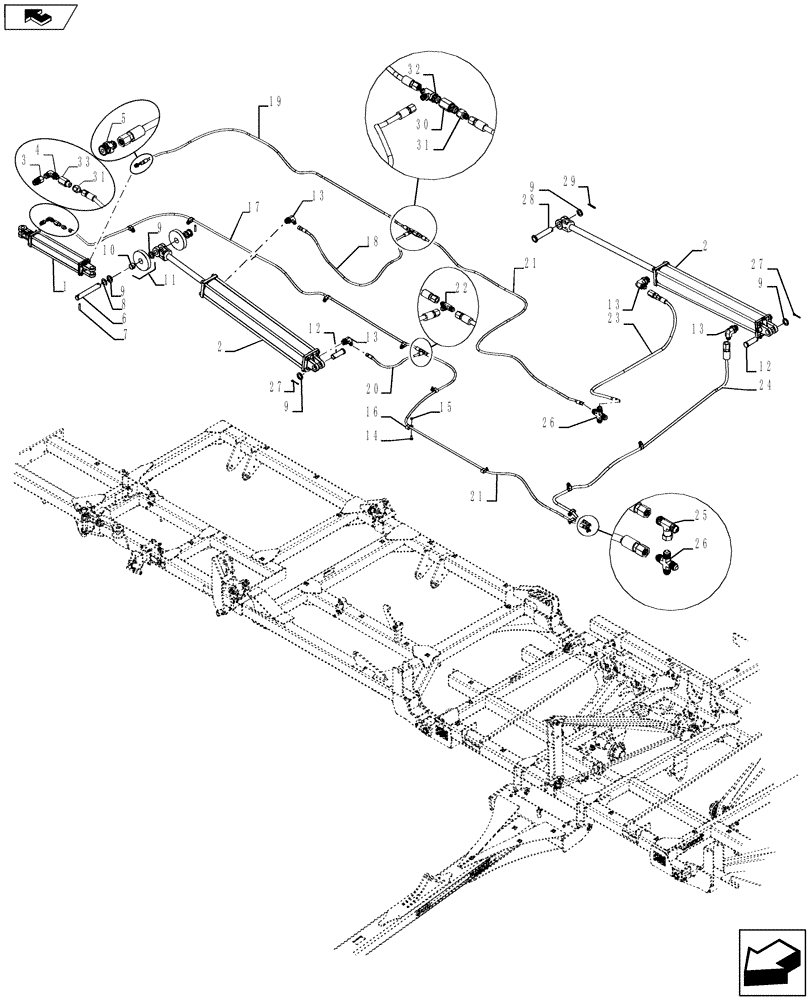

Запчасти Case IH 940 (35.100.03[01]) - WING FOLD HYDRAULICS 60 AND 65 (35) - HYDRAULIC SYSTEMS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 x 16

1шт.

1

25330160R

REMAN-HYD CYLINDER

940, NUTRI-PLACR®, 60' AND 65', 3 x 16

1шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

2

87493925

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

2шт.

87493925R

REMAN-HYD CYLINDER

940 NUTRI-PLACR®

2шт.

87493925C

CORE-HYD CYLINDER

Return Number

1шт.

3

25707534

ADAPTER

1шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

5

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

6

84295486

PIN

1шт.

7

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

8

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

1шт.

9

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

10

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

2шт.

11

84257918

ROLLER

2шт.

12

84156994

CLEVIS PIN

2шт.

13

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

36шт.

15

88902

NUT,3/8"-16

36шт.

16

22510700

HOSE CLAMP,15.86mm

36шт.

17

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

1/4 x 180

1шт.

18

1284291C1

HYDRAULIC HOSE

1/4 x 85

1шт.

19

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4 x 165

1шт.

20

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1/4 x 50

1шт.

21

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

1/4 x 150

2шт.

22

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

23

139654C2

HYDRAULIC HOSE

3/8 x 125

1шт.

24

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

25

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

26

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

2шт.

27

88182

COTTER PIN,1/4" OD x 2" L

2шт.

28

14820461

PIN

1шт.

29

84158586

COILED PIN

2шт.

30

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

1шт.

31

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

32

87564739

TEE

1шт.

33

25405015

CONTROL VALVE

Brown

1шт.
