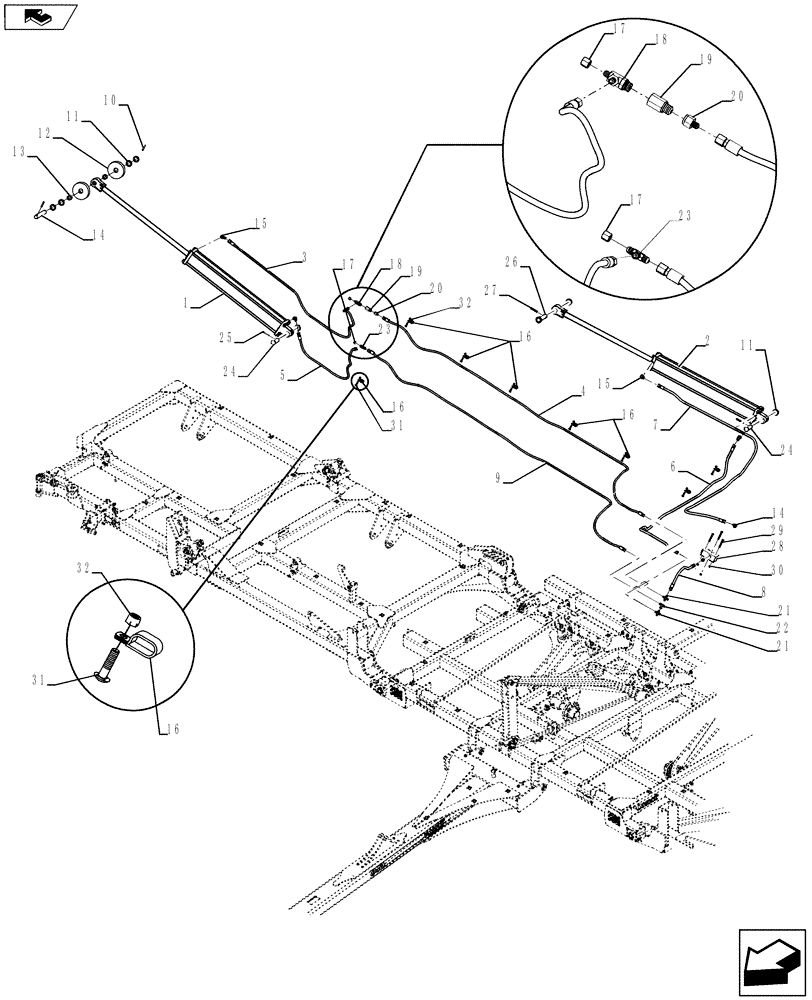

Запчасти Case IH 940 (35.100.03[02]) - WING FOLD HYDRAULICS 50 (Aug 31 2011 2:51PM) (00) - GENERAL & PICTORIAL INDEX

1

87493925

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

1шт.

87493925R

REMAN-HYD CYLINDER

940 NUTRI-PLACR®

1шт.

87493925C

CORE-HYD CYLINDER

Return Number

1шт.

2

87493925

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

1шт.

87493925R

REMAN-HYD CYLINDER

940 NUTRI-PLACR®

1шт.

87493925C

CORE-HYD CYLINDER

Return Number

1шт.

3

1284291C1

HYDRAULIC HOSE

1шт.

4

1254526C2

HOSE ASSY.

1шт.

5

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

6

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

7

139654C2

HYDRAULIC HOSE

1шт.

8

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

1шт.

9

1254526C2

HOSE ASSY.

1шт.

10

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

11

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

1.312X1.984X0.18 HTS ZND HDN

6шт.

12

84257918

ROLLER

2шт.

13

87613235

WASHER,1.28" ID x 2" OD x 0.06" Thk

1.281X2X0.0605 CST ZND

2шт.

14

84295486

PIN

Wing Fold Link

1шт.

15

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Male To Male

5шт.

16

22510700

HOSE CLAMP,15.86mm

10шт.

17

574342

CAP,9/16" - 18 JIC

2шт.

18

87564739

TEE

1шт.

19

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

20

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

21

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

All Male

2шт.

22

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

Male to Male W/ Female Branch

1шт.

23

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

24

84156994

CLEVIS PIN

2шт.

25

88182

COTTER PIN,1/4" OD x 2" L

2шт.

26

14820461

PIN

1шт.

27

84158586

COILED PIN

1шт.

28

25401258

DIVIDER ASSY.

1шт.

29

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

30

88902

NUT,3/8"-16

3шт.

31

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

32

88902

NUT,3/8"-16

10шт.
