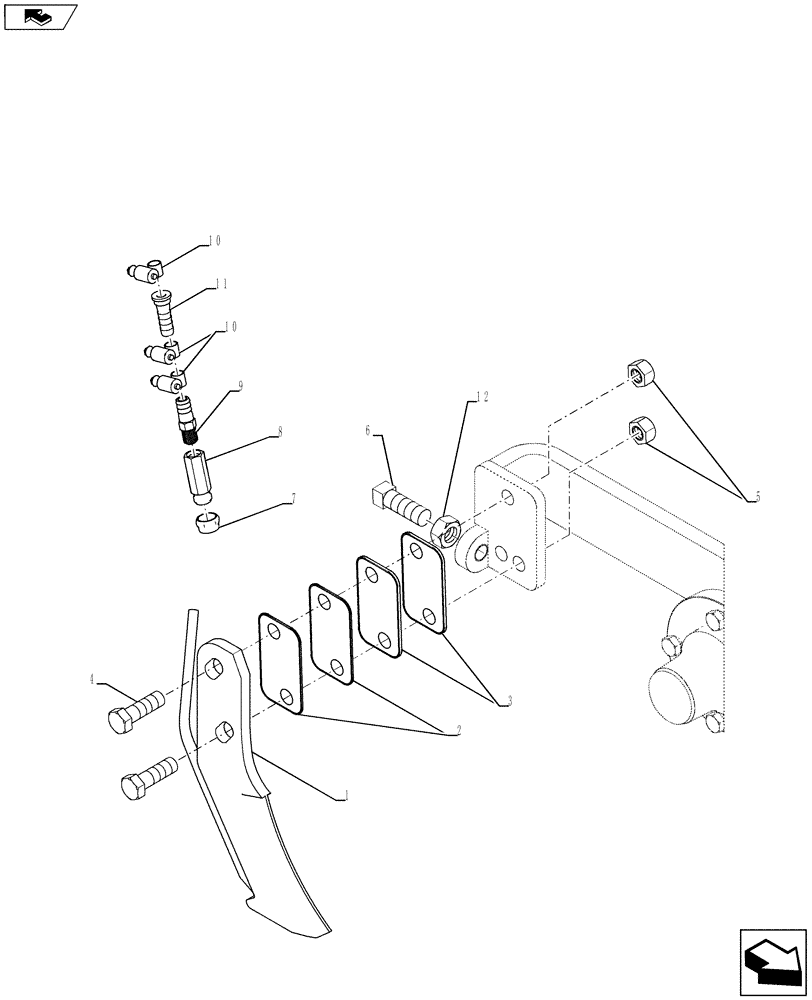

Запчасти Case IH 930 (88.100.06) - COULTER KNIFE KIT (88) - ACCESSORIES

1

87437978

KNIFE

Coulter, 20" Dia, Weld

1шт.

2

05310110

SHIM

2шт.

3

05310120

SHIM

2шт.

4

16910161

BOLT

2шт.

5

14091002

NUT

2шт.

6

16812084

SET SCREW,3/4" - 10 x 2"

1шт.

7

34600031

CAP

1шт.

8

34600030

CHECK VALVE

1шт.

9

15040256

FITTING,1/4" - 18 NPT x 1/2" Hose Barb, SST

1шт.

10

244358

HOSE CLIP,0.44" - 0.78"

3шт.

11

34600007

PIPE FITTING

1шт.

12

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

13

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP (Not Shown)

1шт.
