Запчасти Case IH 930 (88.100.04) - COULTER ASSEMBLY LIQUID 20" (88) - ACCESSORIES

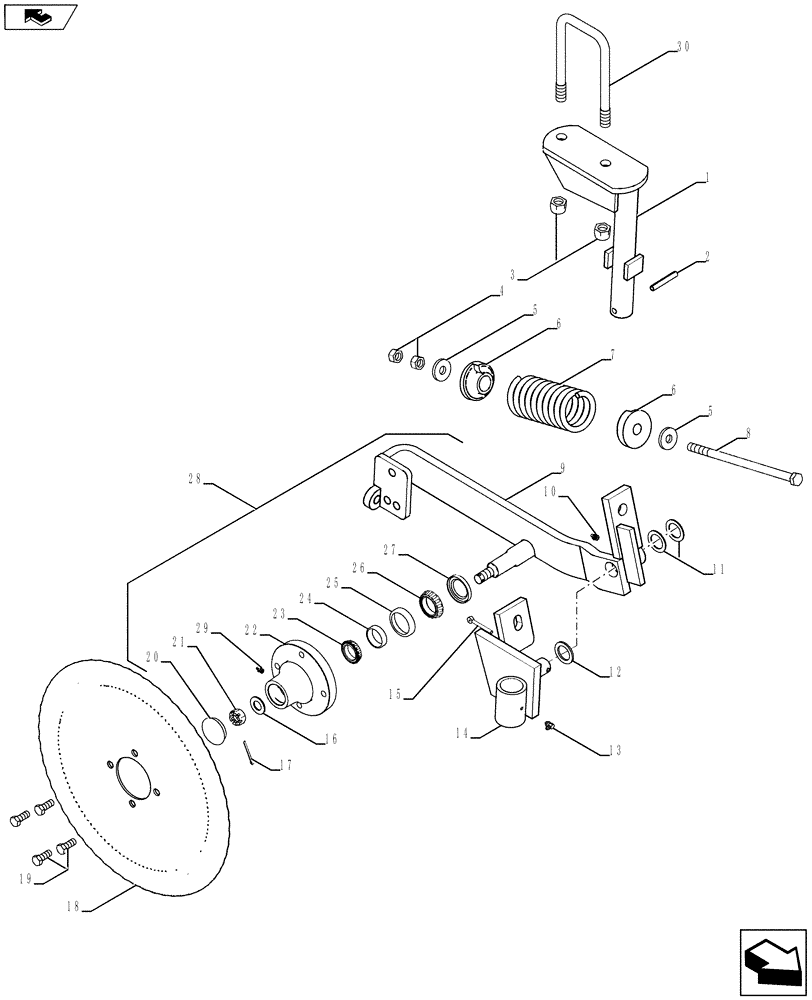

Схема запчастей Case IH 930 - (88.100.04) - COULTER ASSEMBLY LIQUID 20" (88) - ACCESSORIES
6
home
17
14
15
30
22
27
12
28
3
7
25
6
1
5
4
29
19
24
9
16
2
10
5
18
26
23
20
13
11
21
8

Артикул

Название

Примечание

Количество

1

05302700

MOUNTING PARTS

1шт.

2

84294526

SLOTTED PIN

1шт.

3

280375

NUT,3/4"-10, GC

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

6

20090050

HOLDER

2шт.

7

24143880

COMPRESSION SPRING

1шт.

8

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

5/8" - 11 X 12.0 Long SAE GR5 ZND

1шт.

9

Included in 28

1шт.

10

87019498

FITTING

1шт.

11

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

2шт.

12

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1шт.

13

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

14

Included in 28

1шт.

15

88182

COTTER PIN,1/4" OD x 2" L

1шт.

16

17413001

WASHER

1шт.

17

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

18

443627A1

PLOW DISC

1шт.

19

87847

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

4шт.

20

28463300

HUB CAP

1шт.

21

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

22

28263340

HUB

Includes Cups

1шт.

23

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

24

651814R1

BEARING CUP

1шт.

25

651817R1

BEARING CUP

1шт.

26

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

27

126621C1

SEAL

1шт.

28

84526422

ARM

Includes 14 And 19

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

1шт.

30

84512282

U-BOLT

Used On Main Frame

1шт.

30

87427182

U-BOLT

BOLT "U" Used On Inner And Outer Wings

1шт.
