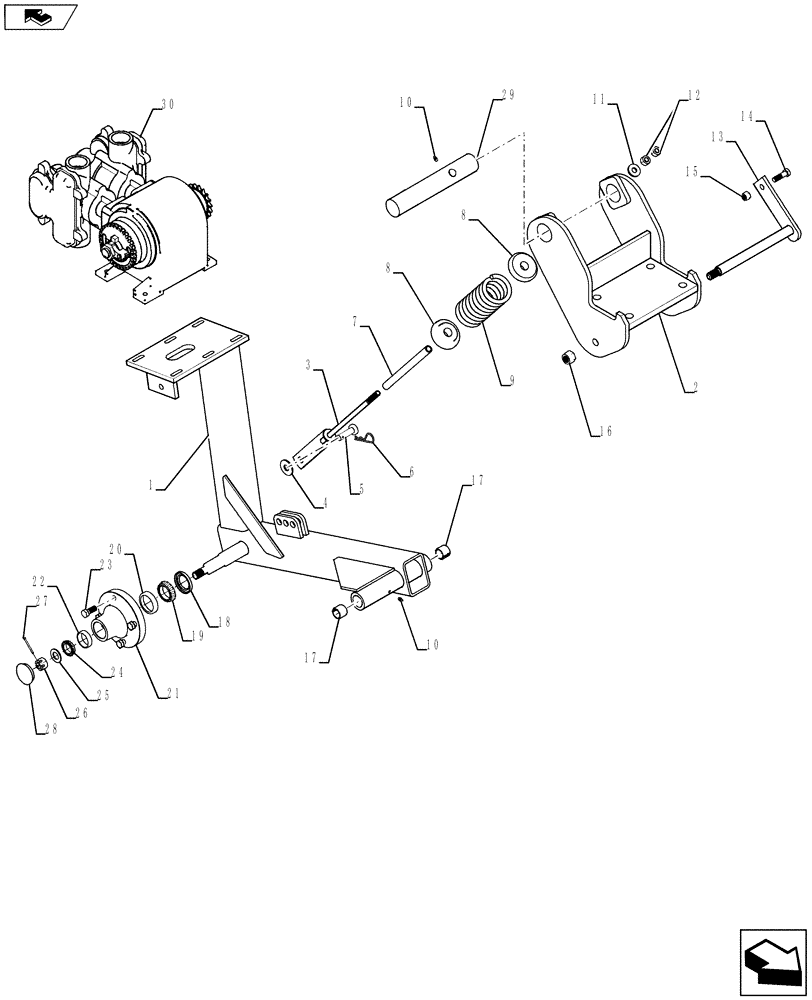

Запчасти Case IH 930 (88.100.01) - GROUND DRIVE PACKAGE (88) - ACCESSORIES

1

84329908

U-FRAME

1шт.

2

84329909

MOUNT

1шт.

3

05302660

SPRING

1шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

5

14810090

X

1шт.

6

14720411

COTTER PIN

PIN, COTTER

1шт.

7

84329910

BUSHING

Included in 29

1шт.

8

20090102

SPRING BOX

2шт.

9

24143901

COMPRESSION SPRING

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

2шт.

11

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

1шт.

12

84150888

NUT

2шт.

13

84272008

PIN

1шт.

14

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

15

88871

NUT,1/2"-13, GC

1шт.

16

280375

NUT,3/4"-10, GC

1шт.

17

87401008

BUSHING,25.4mm ID x 31.75mm OD x 25.4mm L

2шт.

18

21931501

SEAL ASSY.

1шт.

19

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1шт.

20

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

1шт.

21

28263340

HUB

Includes Ref 4 - 6 & 30

1шт.

22

21881780

BEARING CUP

1шт.

23

16408053

SPECIAL BOLT

4шт.

24

21870750

BEARING CONE

1шт.

25

17413001

WASHER

1шт.

26

14051202

SLOTTED NUT

1шт.

27

14700502

COTTER PIN

1шт.

28

28463300

HUB CAP

1шт.

29

84272009

MOUNT

Complete Assembly Includes 1 - 28 & 31

1шт.

30

84315374

PUMP

Pump Assembly, Johnny Blue 9055

1шт.

30

84315373

PUMP

Pump Assembly, Johnny Blue 7055

1шт.

31

15314005

REDUCER FITTING

1/4" - 28, Straight Zerk For Hub (Not Shown)

1шт.

32

87461168

WHEEL ASSY.

Wheel, 14 X 5 KB Rim, 38 Offset, (Not Shown)

1шт.

33

11900003

STEM

(Not Shown)

1шт.

34

11900002

STEM

(Not Shown)

1шт.

35

7.00 X 14 (4 Ply) R1 Tubeless Tire, Procure Locally, (Not Shown)

1шт.
