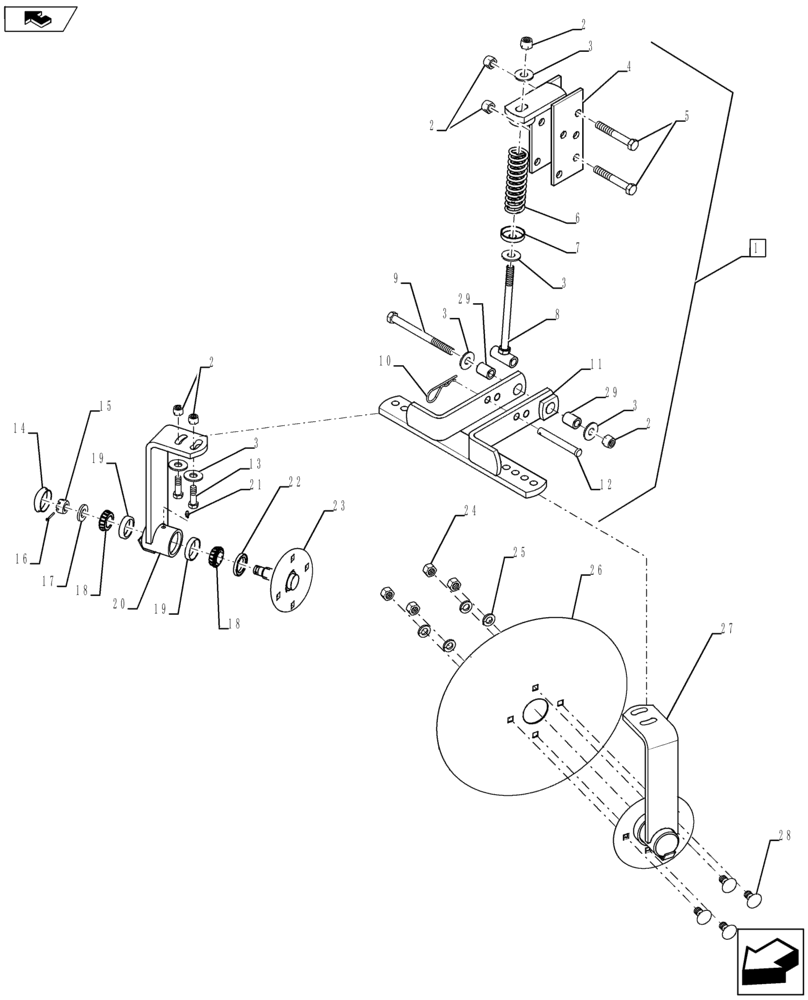

Запчасти Case IH 930 (75.200.05) - 14" SPRING DISK ASSEMBLY (75) - SOIL PREPARATION

1

84394775

MOUNT

1шт.

2

88871

NUT,1/2"-13, GC

6шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

4

02334000

BRACKET

1шт.

5

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

6

24120702

COMPRESSION SPRING

1шт.

7

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

8

02333500

SUPPORT

1шт.

9

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

10

14720411

COTTER PIN

PIN, COTTER

1шт.

11

02335300

FRAME

1шт.

12

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1шт.

13

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

14

28400400

DUST CAP

1шт.

15

14051202

SLOTTED NUT

1шт.

16

80755

COTTER PIN,1/8" OD x 1" L

1шт.

17

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

18

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

1шт.

18

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

19

651814R1

BEARING CUP

1шт.

20

02325150

ARM

Includes Cups And Zirk Fitting

1шт.

21

87414

LUBE NIPPLE,1/4" - 28

1шт.

22

21931000

SEAL

1шт.

23

04666420

AXLE

1шт.

24

9628503

NUT,3/8"-16, G5

4шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

26

443623A1

PLOW DISC

14" Sealer Blade

1шт.

27

02325200

PLOW DISC

Sealer Arm Assembly, Includes 14 - 23

1шт.

28

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

29

02323100

BUSHING

2шт.
