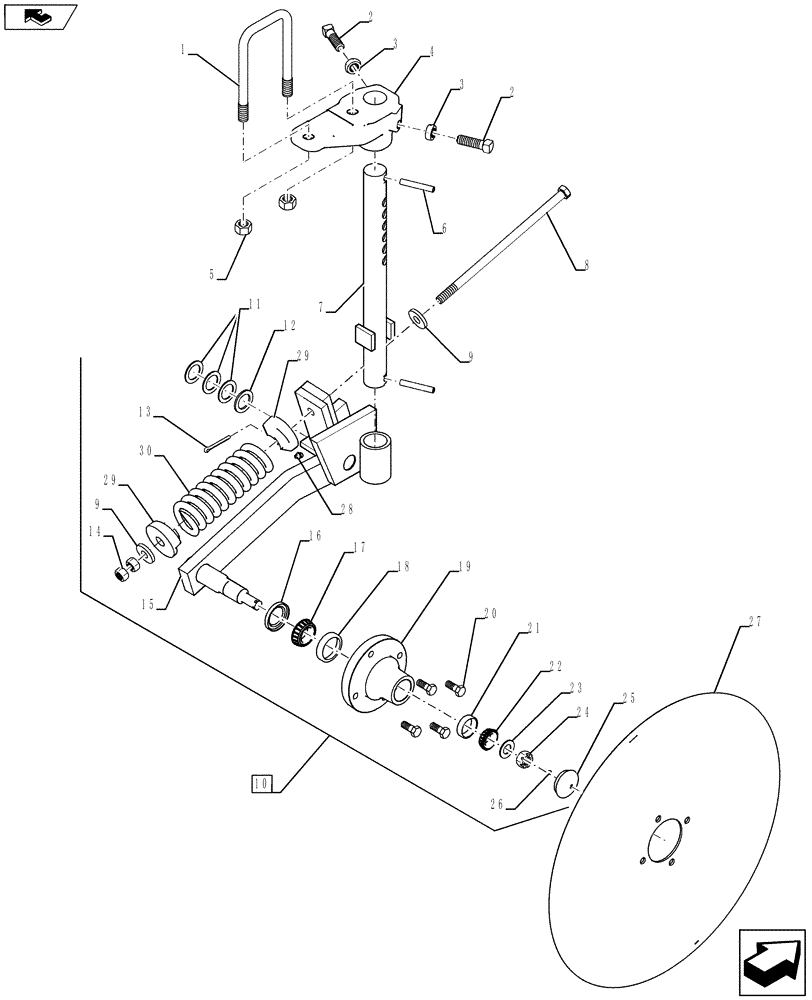

Запчасти Case IH 930 (75.200.04) - INDIVIDUAL COULTER ASSEMBLY (75) - SOIL PREPARATION

1

87427182

U-BOLT

BOLT "U"

1шт.

2

84379042

SET SCREW

2шт.

3

86632557

JAM NUT,Jam, 3/4"-10, G5

2шт.

4

87460812

MOUNTING PARTS

1шт.

5

280954

NUT,3/4"-10, G5

2шт.

6

84294526

SLOTTED PIN

2шт.

7

84293454

SHAFT

1шт.

8

87490800

BOLT

24" Coulter

1шт.

8

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

20" Coulter

1шт.

9

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

10

04663000

BAR ASSY.

20" Coulter

1шт.

10

04663050

COULTER

24" Coulter

1шт.

11

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

3шт.

12

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1шт.

13

88182

COTTER PIN,1/4" OD x 2" L

1шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

15

04663100

BAR ASSY.

20" Coulter Arm Weld, Includes Hub

1шт.

15

04663300

SUPPORT

24" Coulter Arm Weld , Includes Hub

1шт.

16

21931501

SEAL ASSY.

1шт.

17

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1шт.

18

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

1шт.

19

28263340

HUB

W/Cups, Includes Ref#'s 18 & 21

1шт.

20

S0000210

BOLT

4шт.

21

21881780

BEARING CUP

1шт.

22

21870750

BEARING CONE

1шт.

23

17413001

WASHER

1шт.

24

86632554

SLOTTED NUT,3/4"-16, G5

1шт.

25

28463300

HUB CAP

1шт.

26

14700502

COTTER PIN

1шт.

27

443626A1

PLOW DISC

20" Coulter Blade

1шт.

27

443638A1

PLOW DISC

24" Coulter Blade

1шт.

28

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

29

20090050

HOLDER

2шт.

30

24156205

COIL SPRING

24" Coulter Assembly

1шт.
