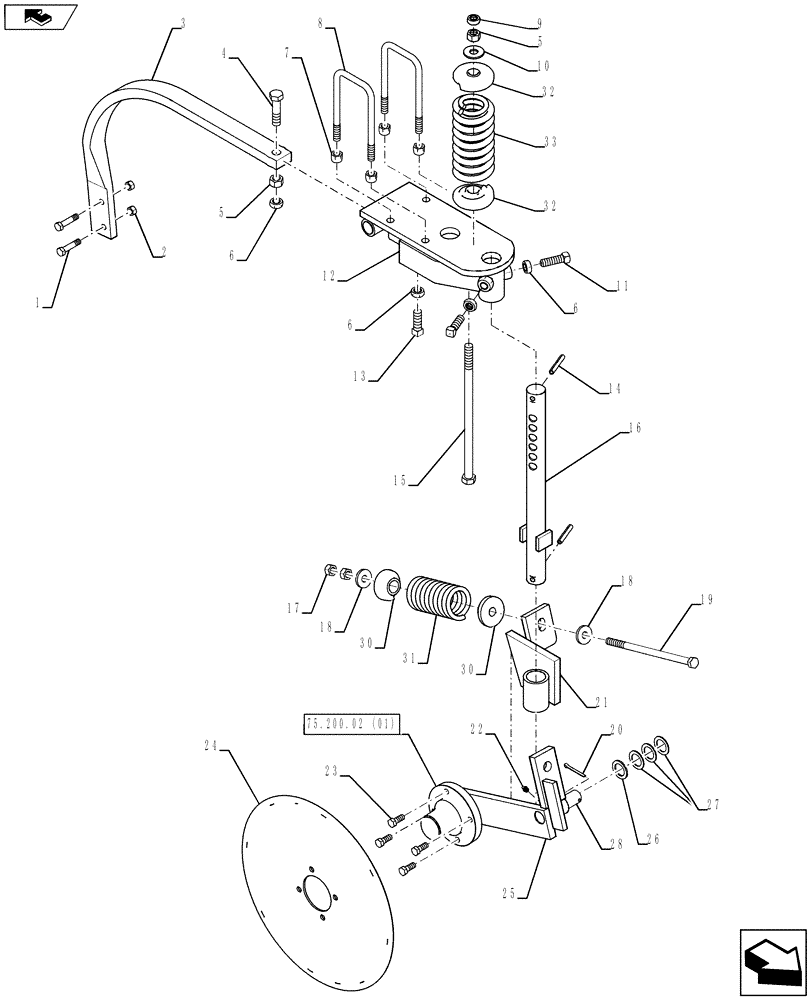

Запчасти Case IH 930 (75.200.02) - SPRING COULTER-SHANK ASSEMBLY (75) - SOIL PREPARATION

1

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

2

280431

NUT,1/2"-13, G5

2шт.

3

33020017

SHANK

1шт.

4

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

5

280954

NUT,3/4"-10, G5

2шт.

6

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

7

85700693

NUT,5/8" - 11, Gr C

4шт.

8

87427170

U-BOLT

BOLT "U"

2шт.

9

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

11

84379042

SET SCREW

2шт.

12

87396602

MOUNTING PARTS

Mount Weldment Only (No Spring Or Hardware)

1шт.

12

87385950

MOUNTING PARTS

Mount Weldment And Spring Assembly

1шт.

13

16812084

SET SCREW,3/4" - 10 x 2"

1шт.

14

84294526

SLOTTED PIN

2шт.

15

16912606

BOLT

1шт.

16

84371647

COULTER

Shaft

1шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

18

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

19

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

1шт.

20

88182

COTTER PIN,1/4" OD x 2" L

1шт.

21

04663200

BAR ASSY.

1шт.

22

87019498

FITTING

1шт.

23

87847

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

4шт.

24

443626A1

PLOW DISC

20" Coulter Blade

1шт.

25

04663100

BAR ASSY.

Included In 29

1шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1шт.

27

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1шт.

28

Included In 29

1шт.

29

04663000

BAR ASSY.

Coulter Arm Assembly (Includes Ref#'s 20-23 & 25-28)

1шт.

30

20090050

HOLDER

2шт.

31

24143880

COMPRESSION SPRING

1шт.

32

20090120

SPRING BOX

2шт.

33

24143812

COMPRESSION SPRING

1шт.
