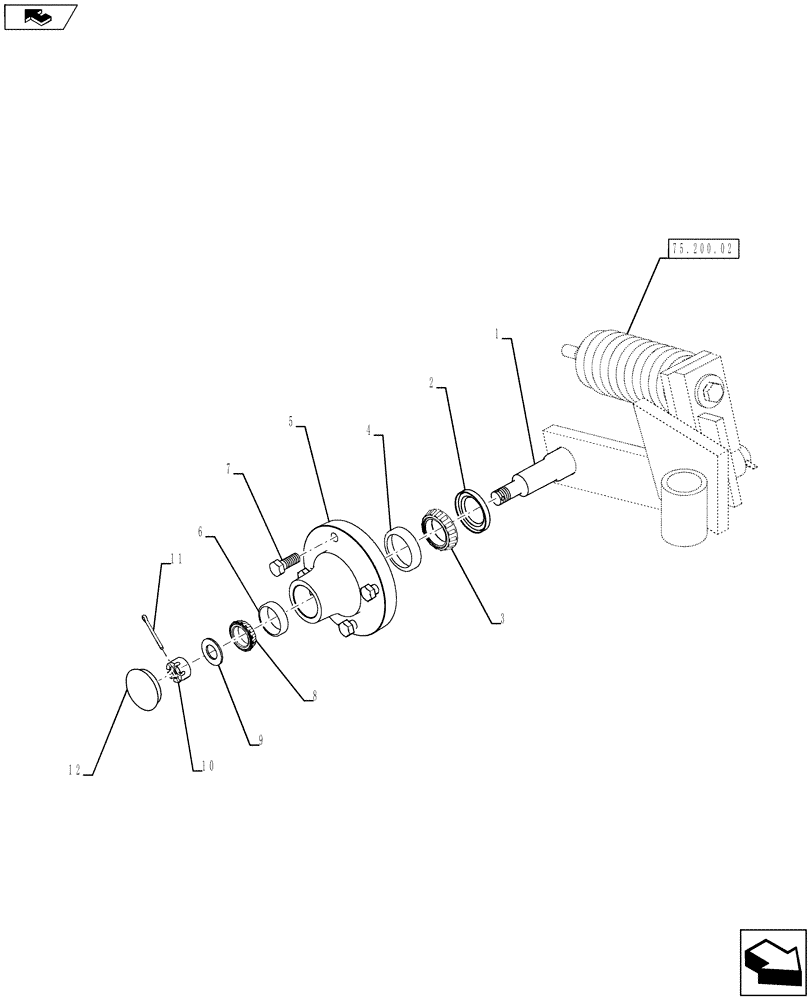

Запчасти Case IH 930 (75.200.02[01]) - SPRING CLTR-SHNK ASS HUB/SPINDLE (75) - SOIL PREPARATION

1

Refer To 75.200.02

1шт.

2

21931501

SEAL ASSY.

1шт.

3

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1шт.

4

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

1шт.

5

28263340

HUB

Includes Ref 4 - 6

1шт.

6

21881780

BEARING CUP

1шт.

7

87847

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

4шт.

8

21870750

BEARING CONE

1шт.

9

17413001

WASHER

1шт.

10

14051202

SLOTTED NUT

1шт.

11

14700502

COTTER PIN

1шт.

12

28463300

HUB CAP

1шт.

13

15314005

REDUCER FITTING

1/4" - 28, Straight Zerk (Not Shown)

1шт.
