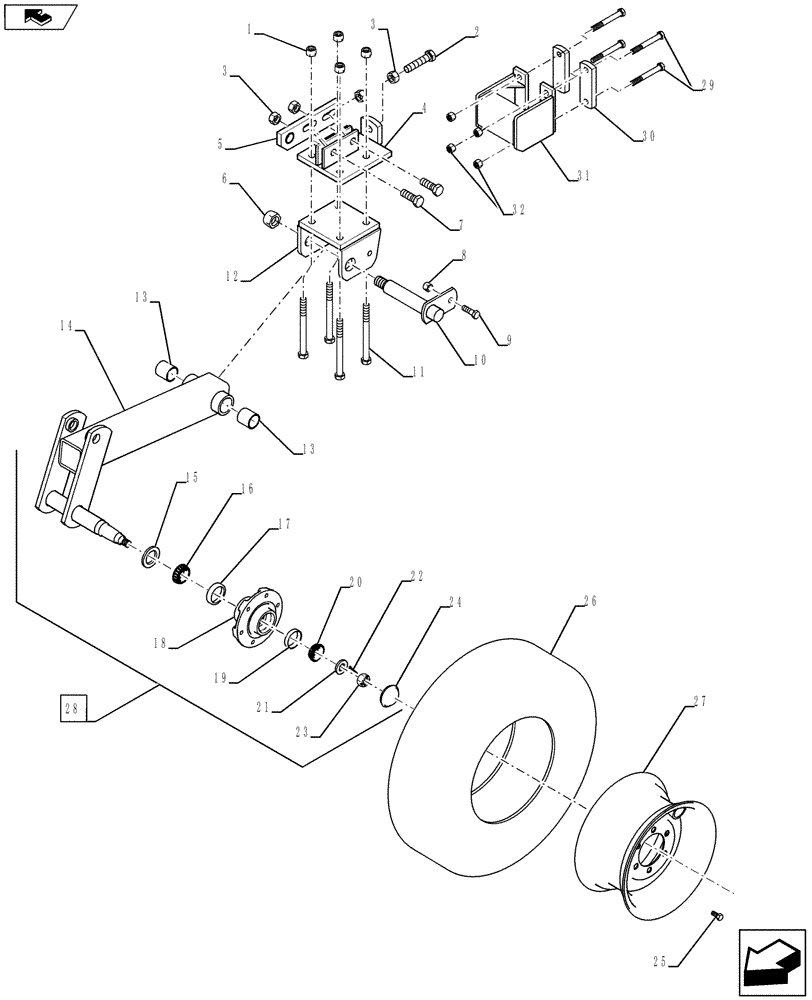

Запчасти Case IH 930 (44.100.12) - 27-37 WING SINGLE HUB ASSEMBLY (44) - WHEELS

1

280375

NUT,3/4"-10, GC

4шт.

2

16901411

BOLT

1шт.

3

9849647

NUT,7/8"-9, G5

4шт.

4

04661420

MOUNTING PARTS

1шт.

5

84369348

LUG

1шт.

6

86614103

NUT,1 1/4"-7, GC

1шт.

7

87490810

BOLT

2шт.

8

85700693

NUT,5/8" - 11, Gr C

1шт.

9

86508732

BOLT,5/8"-11 x 2.391" L, Cl 8

1шт.

10

84374554

PIN

1шт.

11

86502676

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

4шт.

12

84372064

MOUNT

1шт.

13

87566586

BUSHING

2шт.

14

Included In 28

1шт.

15

145769C91

OIL SEAL

1шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

17

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

1шт.

18

28278300

HUB

Includes Bearing Cups and Zerk

1шт.

19

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

1шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

21

17915000

WASHER

1шт.

22

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

23

84151573

NUT

1шт.

24

28477700

HUB CAP

1шт.

25

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

5шт.

26

Procure Locally 9.5L - 15FI(F) Tubeless Tire

1шт.

27

10108254

WHEEL

1шт.

28

84573218

ARM

LH (Shown) Includes 13-25

1шт.

28

84573217

ARM

RH Includes 13-25

1шт.

29

87490802

BOLT

Not Used On All Sizes/Configurations

4шт.

30

09576757

STRAP

Not Used On All Sizes/Configurations

2шт.

31

84471430

BAR

Not Used On All Sizes/Configurations

2шт.

32

87681198

NUT,Hex, 7/8"-9, 0.45 high

Not Used On All Sizes/Configurations

4шт.
