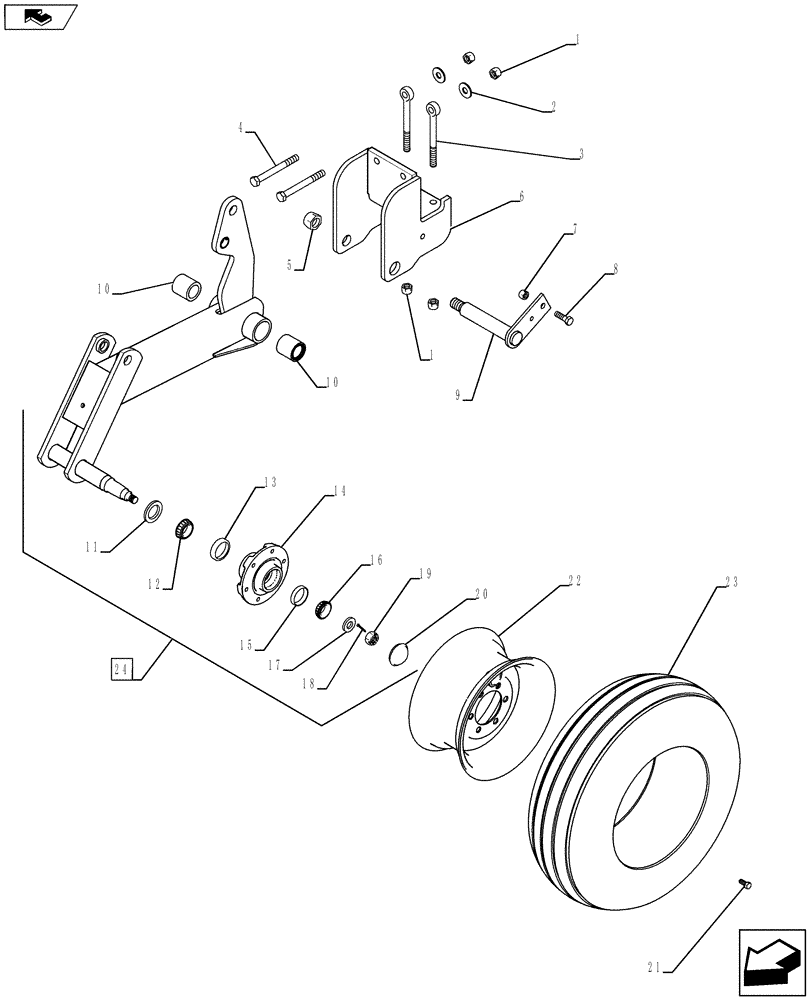

Запчасти Case IH 930 (44.100.07) - 42 WING SINGLE HUB ASSEMBLY (44) - WHEELS

1

280375

NUT,3/4"-10, GC

4шт.

2

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

3

84271268

EYEBOLT

2шт.

4

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

5

86614103

NUT,1 1/4"-7, GC

1шт.

6

84493635

MOUNT

1шт.

7

85700693

NUT,5/8" - 11, Gr C

1шт.

8

86508732

BOLT,5/8"-11 x 2.391" L, Cl 8

1шт.

9

84493961

PIN

1шт.

10

84493888

BUSHING

2шт.

11

145769C91

OIL SEAL

1шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

13

663558R1

BEARING CUP

1шт.

14

28278300

HUB

Includes Cups (Ref#'s 13 and 15)

1шт.

15

651817R1

BEARING CUP

1шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

17

17915000

WASHER

1шт.

18

84151573

NUT

1шт.

19

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

20

28477700

HUB CAP

1шт.

21

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

6шт.

22

10108254

WHEEL

1шт.

23

11L - 15 Procure Locally

1шт.

24

84493838

ARM

LH, Includes 10 - 20

1шт.

24

84493840

ARM

RH, Includes 10 - 20

1шт.
