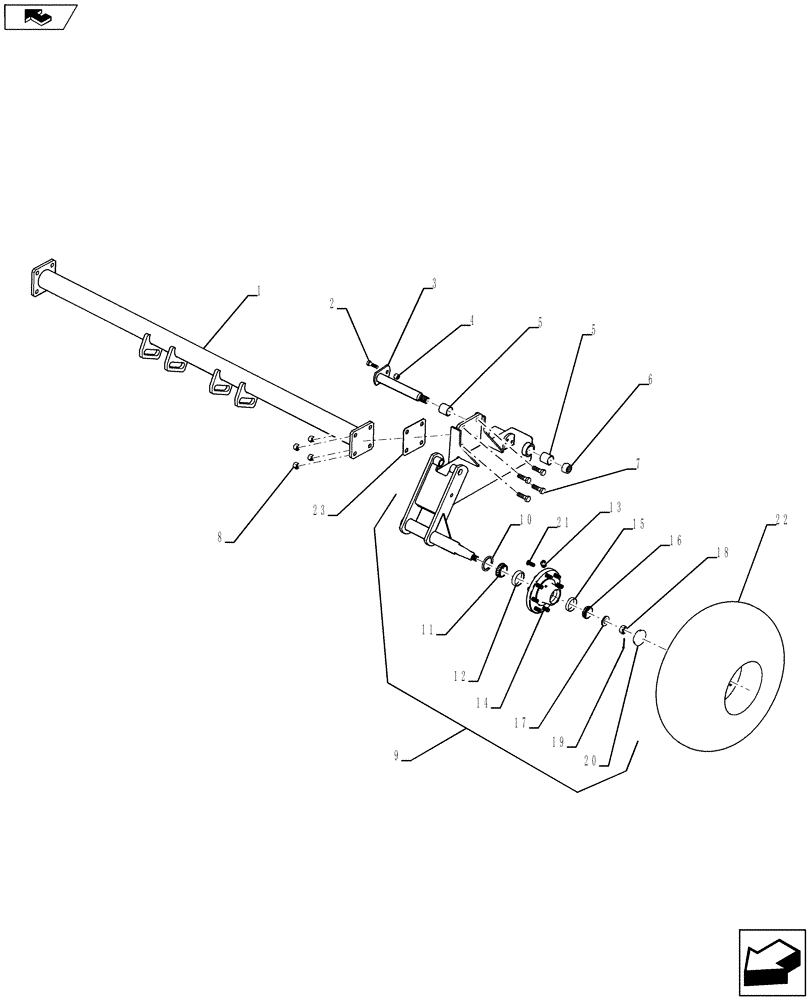

Запчасти Case IH 930 (44.100.06) - 27-42 MAIN FRAME SINGLE HUB ASSEMBLY (44) - WHEELS

1

84414351

SUPPORT TUBE

1шт.

2

86508732

BOLT,5/8"-11 x 2.391" L, Cl 8

1шт.

3

84271660

PIN

1шт.

4

85700693

NUT,5/8" - 11, Gr C

1шт.

5

87566586

BUSHING

2шт.

6

86614103

NUT,1 1/4"-7, GC

1шт.

7

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

8

280375

NUT,3/4"-10, GC

4шт.

9

84414438

ARM

LH - Includes Arm & Ref 5, 10 - 21

1шт.

84414437

ARM

RH - Includes Arm & Ref 5, 10 - 21

1шт.

10

21932502

SEAL

1шт.

11

86980506

BEARING ASSY

Bearing Cone

1шт.

12

376463C1

BEARING CUP

Bearing Cup

1шт.

13

87645504

FITTING

1шт.

14

84423047

HUB

Includes Cups and Studs Ref #'s 12 & 15 & 21

1шт.

15

663558R1

BEARING CUP

1шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

17

17916100

WASHER

1шт.

18

427652

SLOTTED NUT,1"-14, G5

1шт.

19

87400

COTTER PIN,3/16" x 2"

1шт.

20

84238032

DUST CAP

1шт.

21

557309R1

BOLT

1шт.

22

NSS

NOT SOLD SEPARAT

12.5L X 15 FI Tire

1шт.

23

84414355

SHIM

Shim, Torque Tube

1шт.

24

554480R1

WHEEL NUT

Wheel Nut (Not Shown)

8шт.
