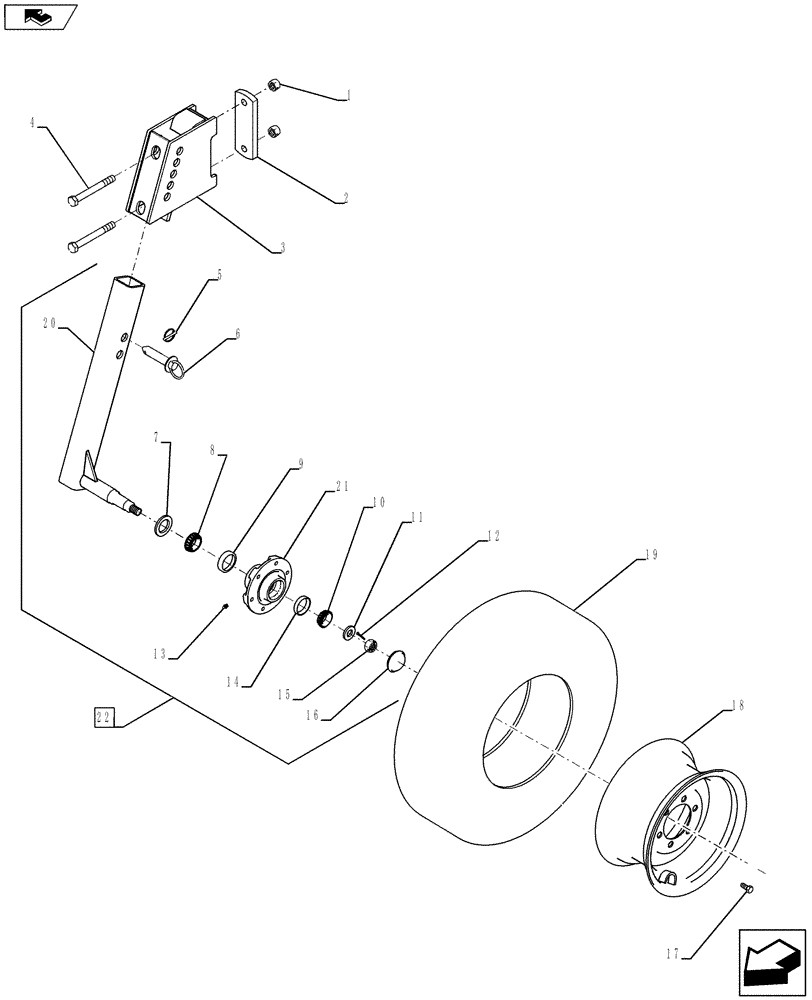

Запчасти Case IH 930 (44.100.05) - 47 GAUGE WHEEL ASSEMBLY (44) - WHEELS

1

280375

NUT,3/4"-10, GC

2шт.

2

09576610

LINKAGE

Flat

1шт.

3

04661320

GAUGE

Wheel Mount

1шт.

4

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

2шт.

5

270184

LINCH PIN,6.35mm OD

1шт.

6

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

7

614410R91

SEAL

1шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

9

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

11

17915000

WASHER

1шт.

12

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

13

87019498

FITTING

1шт.

14

651817R91

BEARING, CUP

1шт.

15

84151573

NUT

1шт.

16

28477700

HUB CAP

1шт.

17

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

5шт.

18

10108254

WHEEL

1шт.

19

Procure Locally 9.5L X 15 FI F

1шт.

20

Included In 22

1шт.

21

84421942

HUB

Includes 9 & 14

1шт.

22

84338991

SPINDLE

Includes 7-17 & 20 - 21

1шт.
