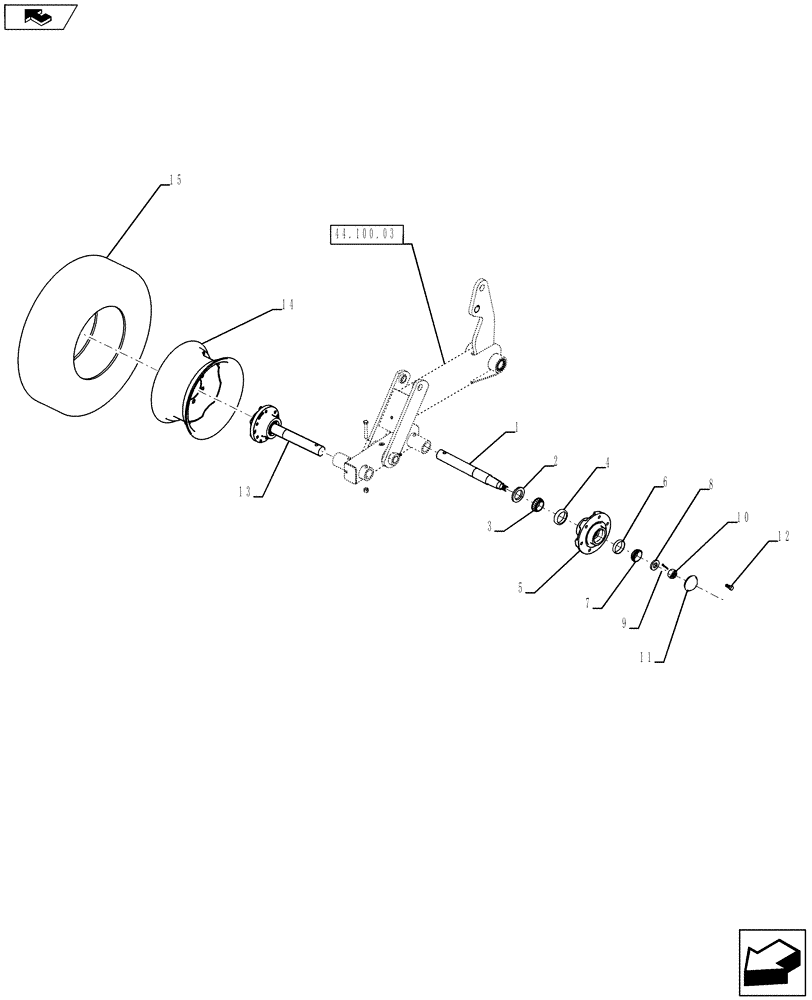

Запчасти Case IH 930 (44.100.04) - 42-47 WING TANDEM HUB ASSEMBLY (44) - WHEELS

1

28378371

STUB AXLE/STEERING S

1.875"

1шт.

2

145769C91

OIL SEAL

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

4

663558R1

BEARING CUP

1шт.

5

28278300

HUB

Includes 4 & 6

1шт.

6

651817R1

BEARING CUP

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

8

17915000

WASHER

1шт.

9

8835

ROLLER BEARING

1шт.

10

84151573

NUT

1шт.

11

28477700

HUB CAP

1шт.

12

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

6шт.

13

28078372

STUB AXLE/STEERING S

Includes 1 - 12, 16

1шт.

14

10108254

WHEEL

1шт.

15

9.5L - 15FI(E) Tubeless Tire, Procure Locally

1шт.

16

15302005

FITTING

Not Shown

1шт.
